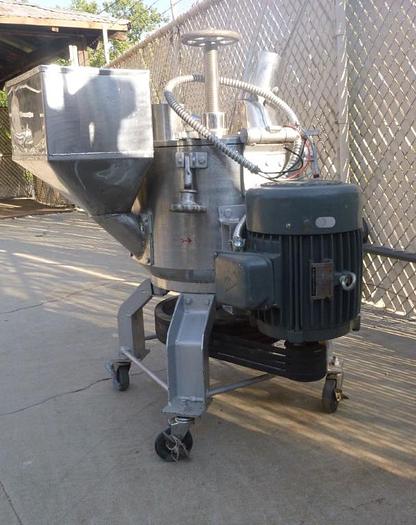

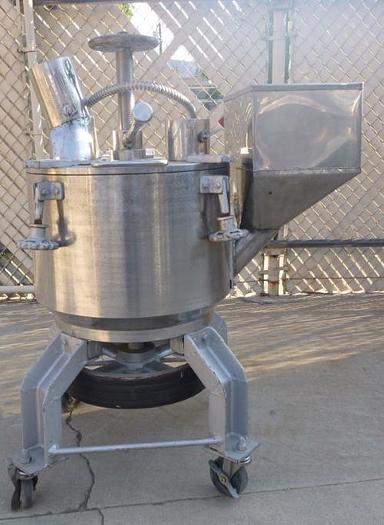

Grinder, Mill, Roller, 15 Gallon, 19" Dia, Roller, 7.5 HP #S744005

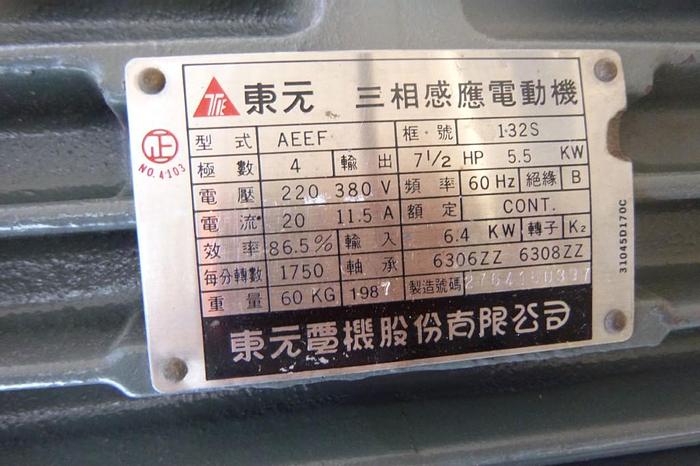

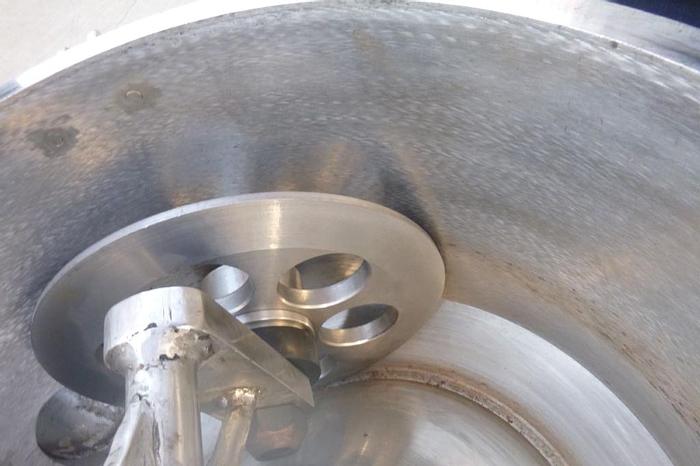

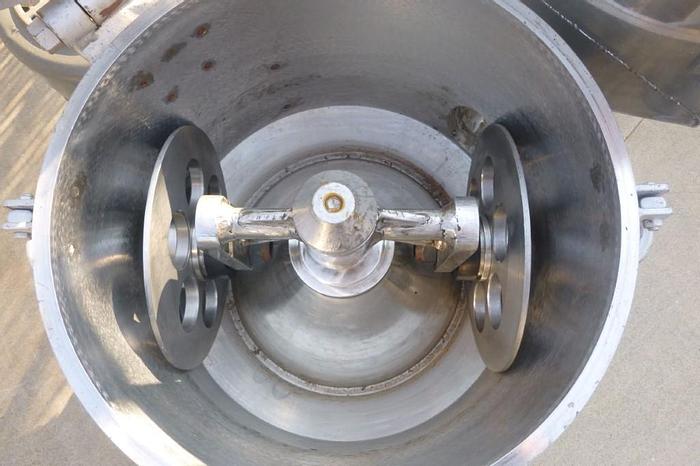

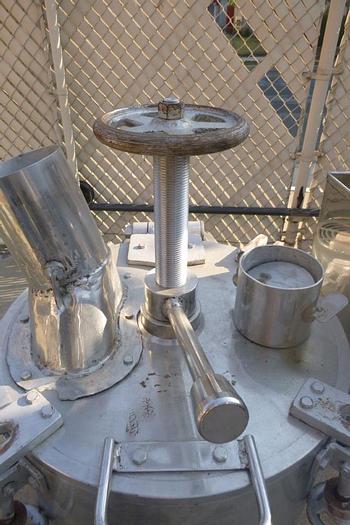

Stainless Steel Double Roller Pan Mill Grinder, approximately 15 gallon capacity, tank diameter measures 19" x 12" straight side X 15" in height. Rollers measure 12" diameter X 3/4" in width, feeder hopper measures 14" x 10" x 14" leading to a 4" diameter inlet. Includes (2) 4" diameter ports with air duct dampers and a manual adjuster tensioner for the rollers. Mill consists of (2) rollers mounted on a horizontal shaft and turned round a central vertical shaft on a bed of steel. Driven by 7.50 HP, 220/380 V, 3-phase, 60 Hz, 1750 RPM, motor thru reducer, ratio 4:1, with a final output of 437 RPM.
