Filter, Pressure Leaf, 160 SF, 316L S/st, Funda, VTHL #S732256

Available quantity

1

Location

San Dimas, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberS732256
ManufacturerChemap Engineering
Model15M2

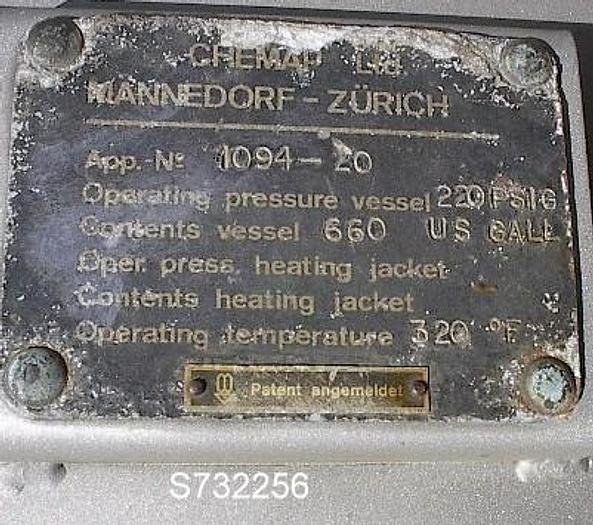

Serial Number1094-20
Square Feet160
Tank Diameter48"
Materials of Construction316L Stainless Steel
TypeVertical Tank / Horizontal Leaf
BasisFOB

Description

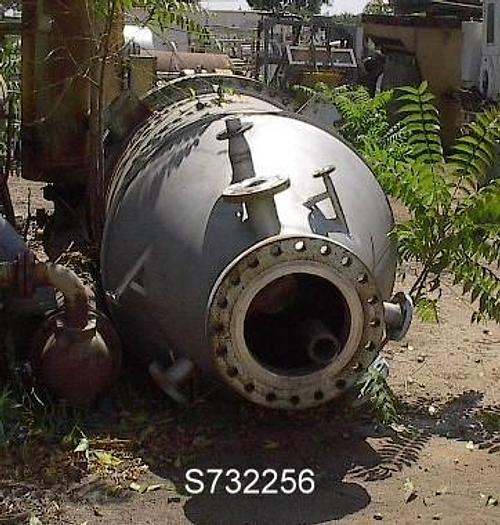

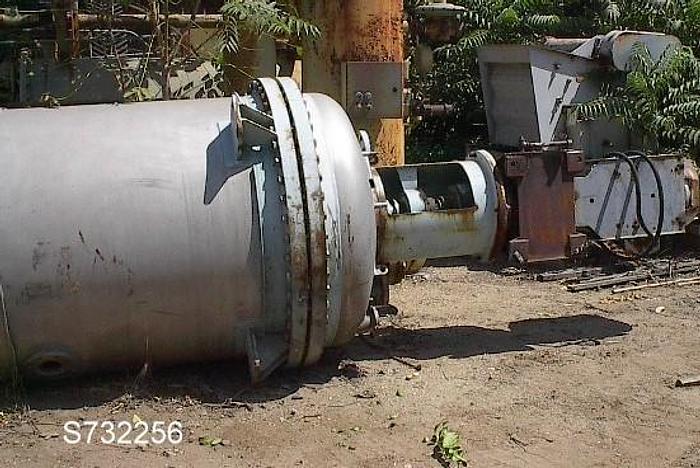

Funda pressure leaf filter, 160 square feet with 316L stainless steel wetted parts, rated for 220 PSI at 320 degrees Fahrenheit. Internal tank measures 4' diameter x 6'3" overall with conical bottom, unit has 30 HP 220/440 volt motor drive thru Falk gearbox with 6.265:1 ratio for 280 RPM. Unit complete with 20 filter disks, mesh less than .013, 1 meter diameter, Model 15M2 (15 square meters area), no legs. Unit manufactured by Chemap Engineering, Zurich. Serial number 1094-20, tank is us 660 gallons, appears unused.
