Feeder, Screw, 8", S/st, Acrison, 4' X 4' Mix Tub, #C328680

Available quantity

1

Location

Brisbane, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberC328680
ManufacturerAcrison
Screw Dimensions8" Diameter X 6' Long
Materials of ConstructionStainless Steel
Hopper Dimensions48" x 48"
Previous UseChemical Processing
BasisFOB

Description

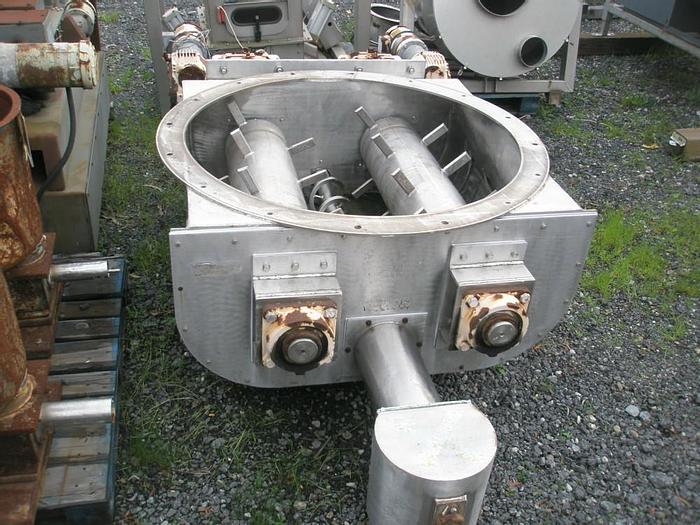

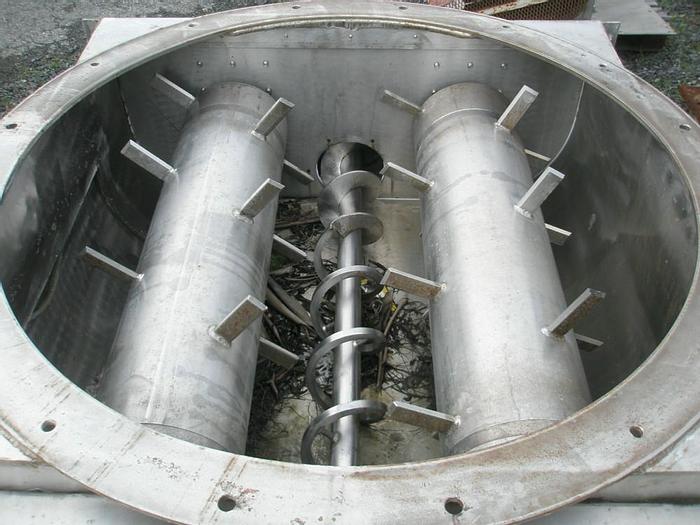

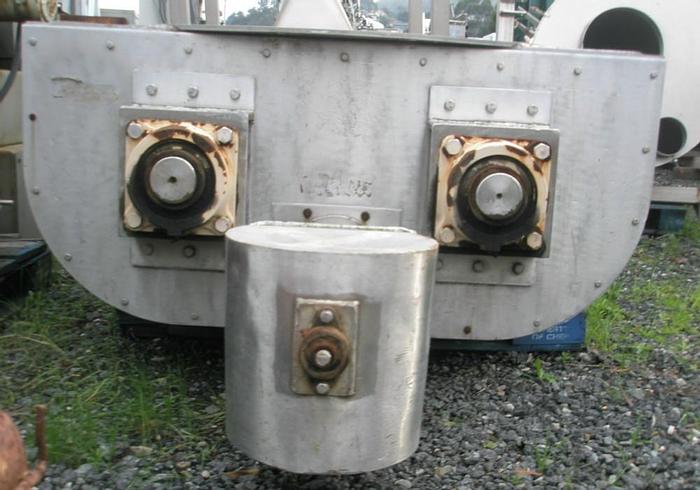

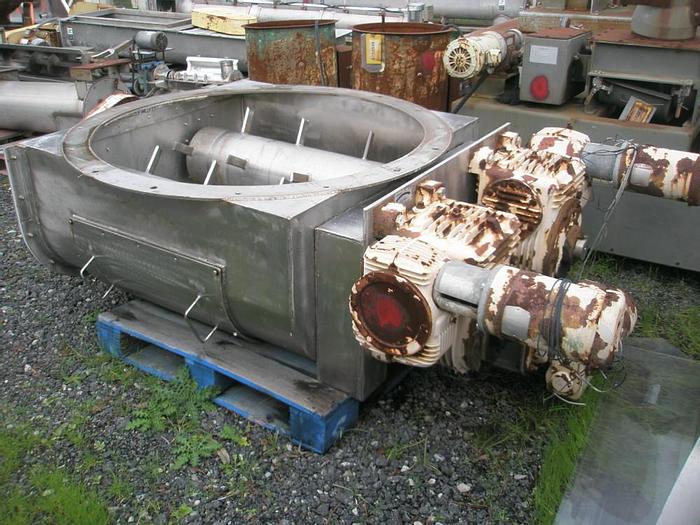

Acrison feeder, with mixing tub, 8" diameter x 6' long discharge screw. All stainless steel contact surfaces. Mixing tub is 4' x 4' with (2) 10" diameter x 4' long lump breakers. Each barrel has 5" long blades for lump breaking. Each barrel is driven by 2 HP vari-speed motor. The mixing chamber is discharged by an 8" diameter x 6' long discharge screw which extends 2' past the mixing chamber. The discharge screw is driven by 3 HP vari-speed.
