Feeder, Belt, 80" X 45', C/st, Hydraulic, Grizzly #S738502

Feeder, Belt, 80" X 45', C/st, Hydraulic, Grizzly #S738502

Available quantity: 1

Timmins, ON, Canada

orCall +1 (415) 467-3400

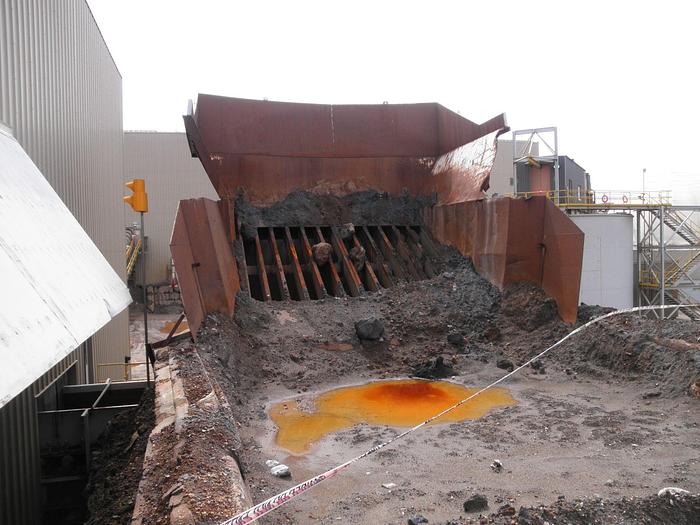

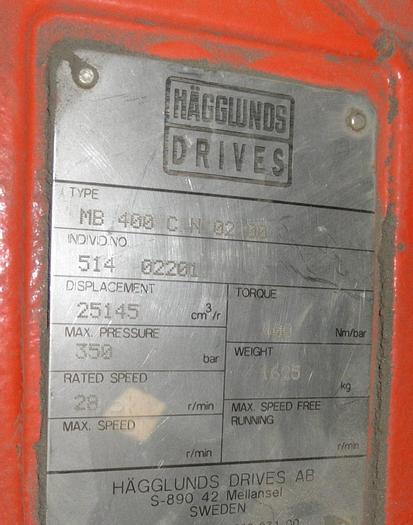

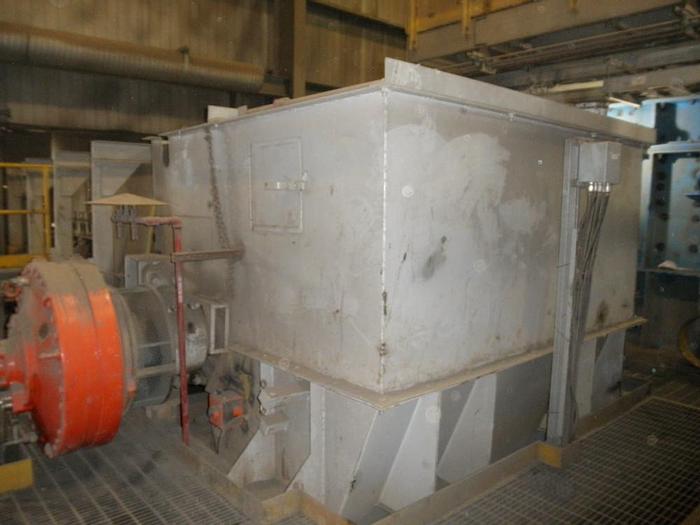

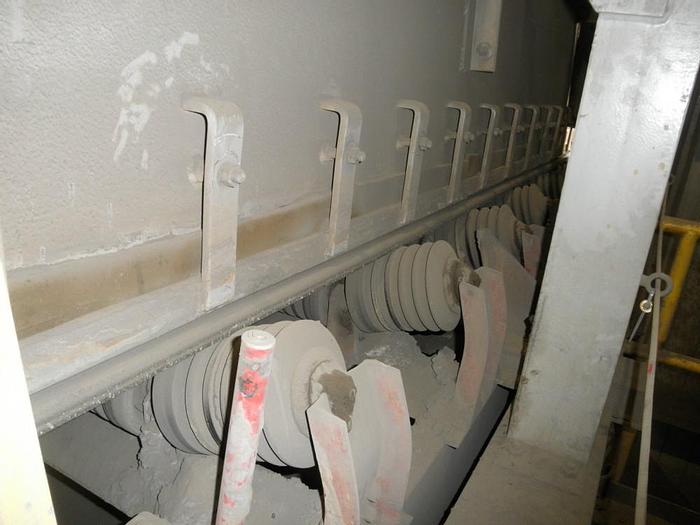

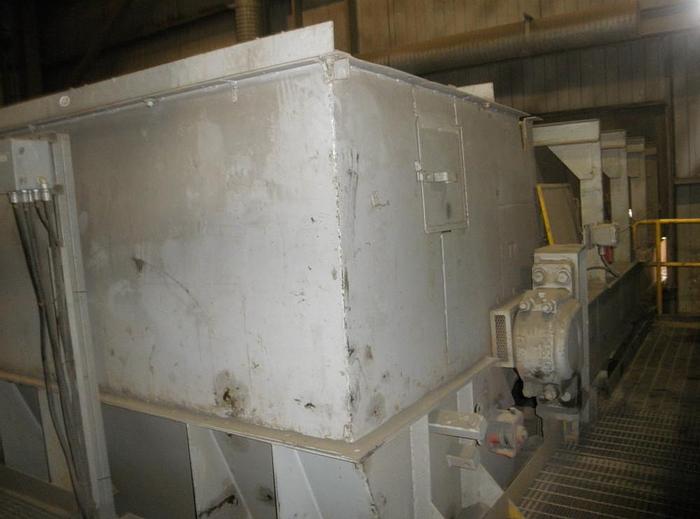

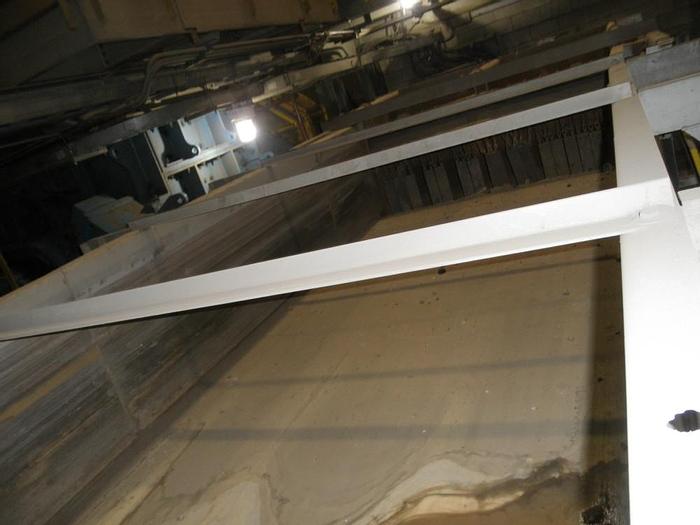

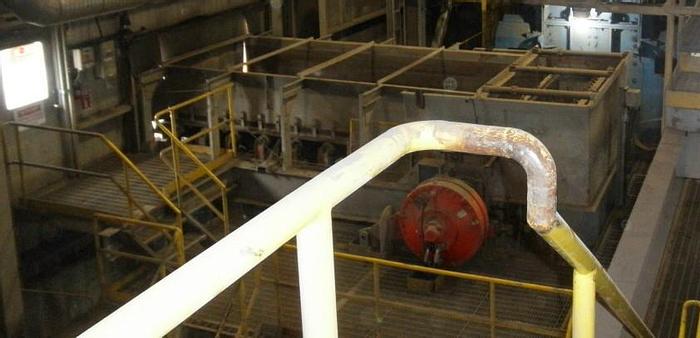

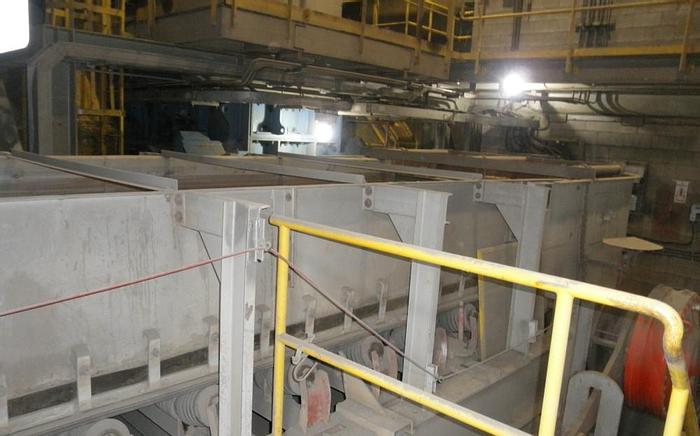

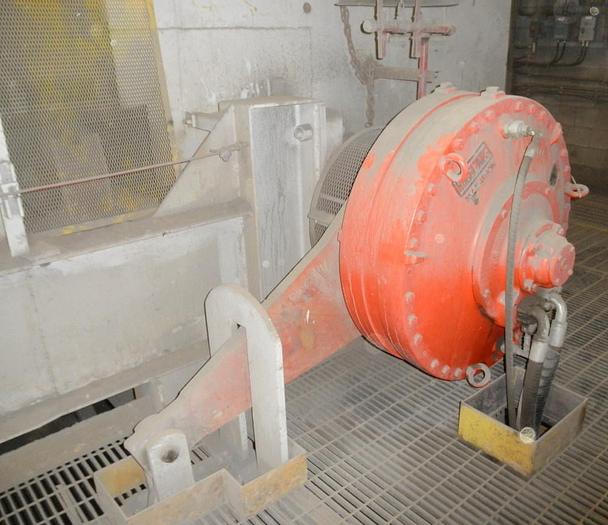

Belt feeder, measures 80" wide x 45' long belt conveyor, rubber belt, 36" high sidewalls, with inspection door, belt running on impact idlers, conveyor is hydraulically driven by Hagglunds Marathon (Sweden) hydraulic drive, type MB400 CN 0200, 24145 cm3 displacement, 400 Nm bar torque, 350 bar pressure, 25 RPM, 1625 kg. Belt feeder is fed through dump hopper with grizzly scalping bars, hopper measures 18' x 10', with 25' high sidewalls. Belt feeder discharges on take-away conveyor to mill building. Previously used at phosphate minerals processing facility. Equipment was dismantled and is now being stored at crane yard for easy loading.


Stock NumberS738502
Belt Dimensions80" Wide X 45' Long X 36" High
Previous UsePhosphate Minerals Processing
BasisAs Is, Where Is
