Dust Collector, Baghouse, 1,500 SF, C/st, 15 Hp, FABRI-Pulse #S743536

Available quantity

1

Location

San Dimas, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberS743536
ManufacturerOther
Model6-420-1500
Serial NumberFR890085
SqFt1,500
BasisFOB

Description

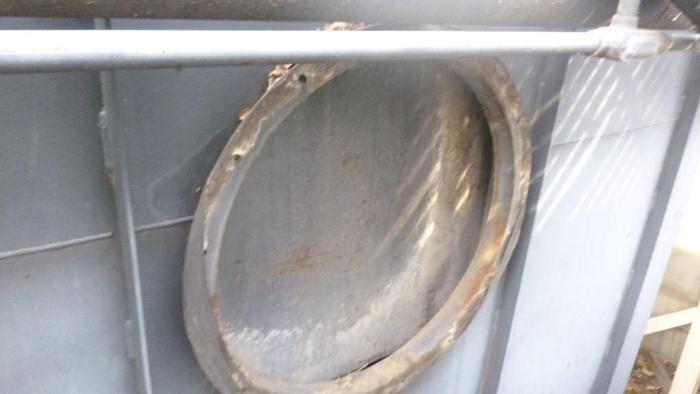

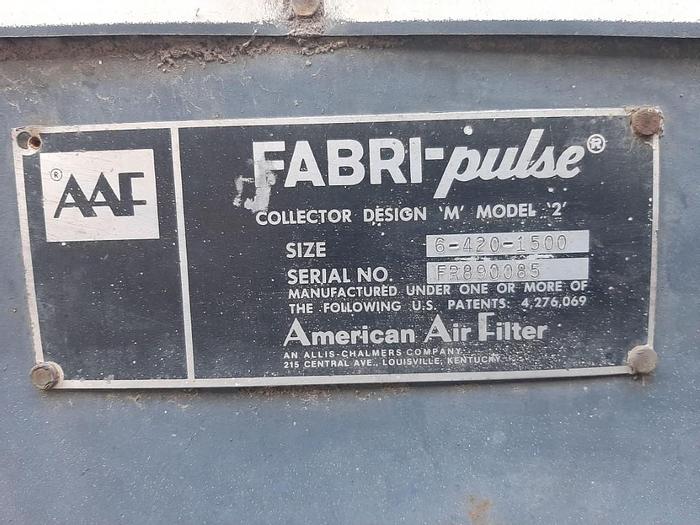

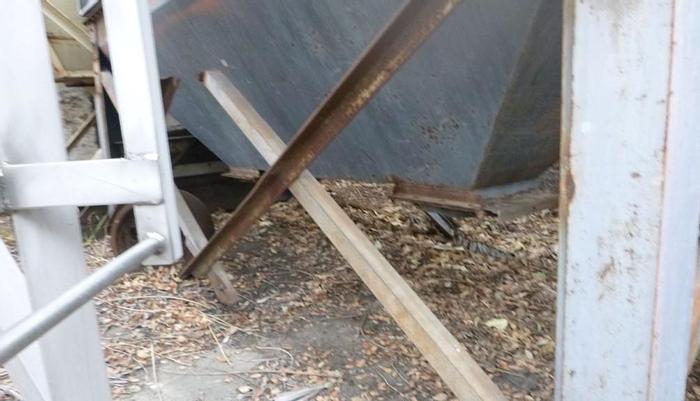

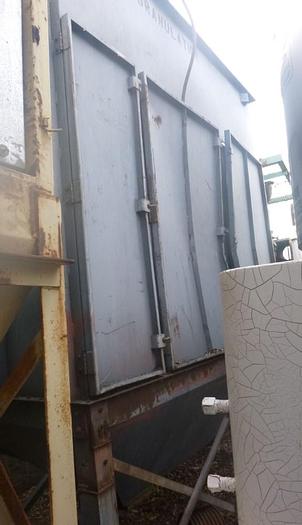

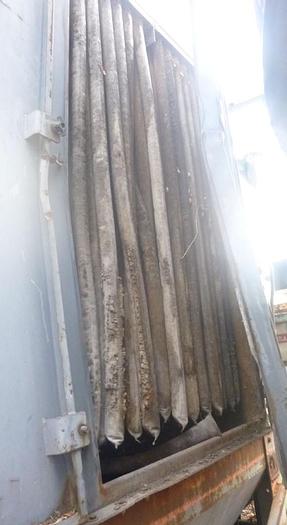

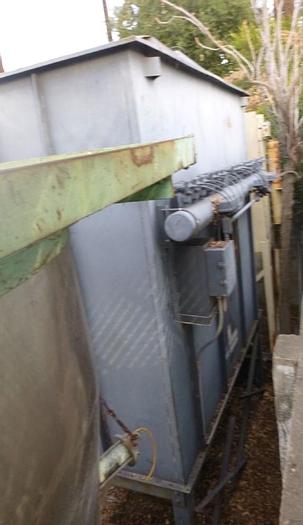

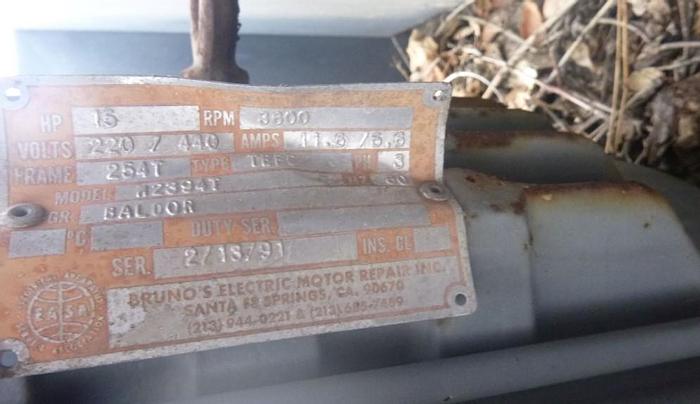

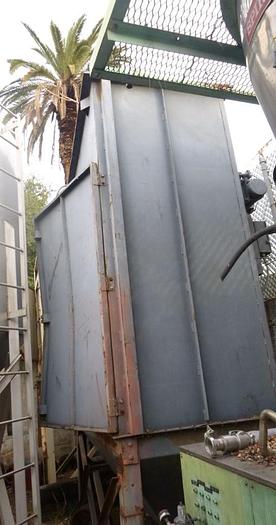

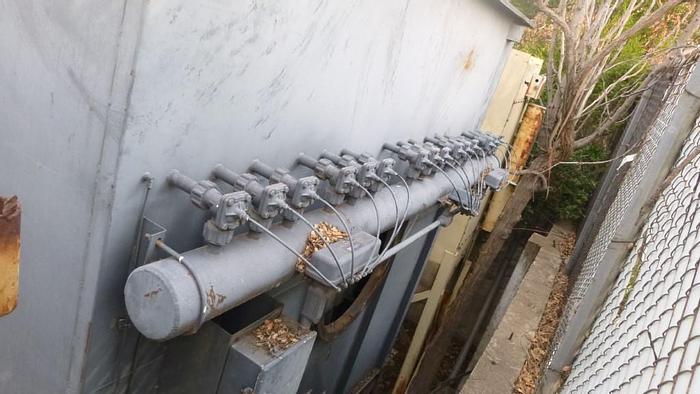

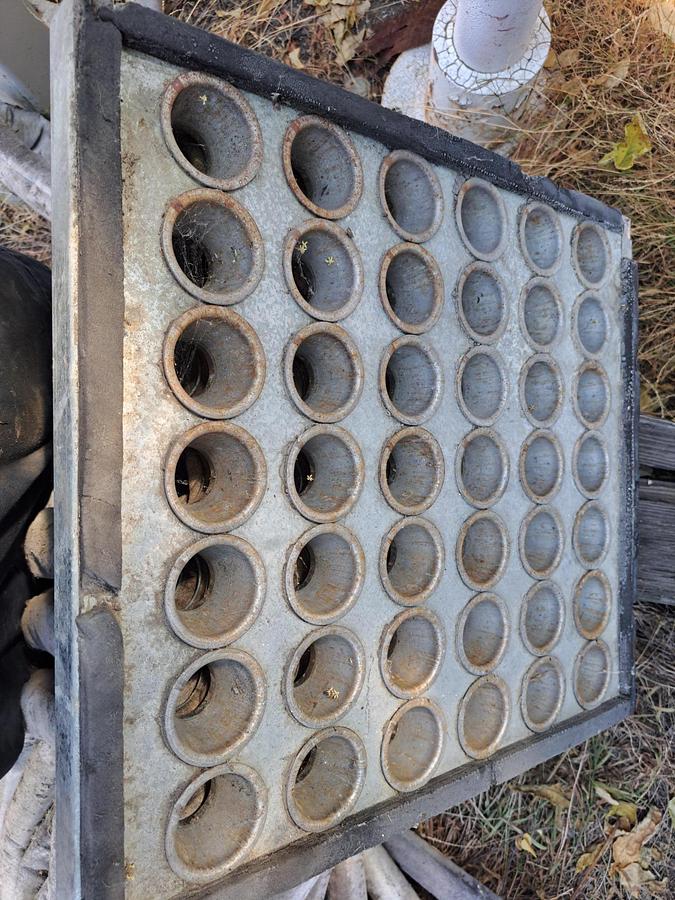

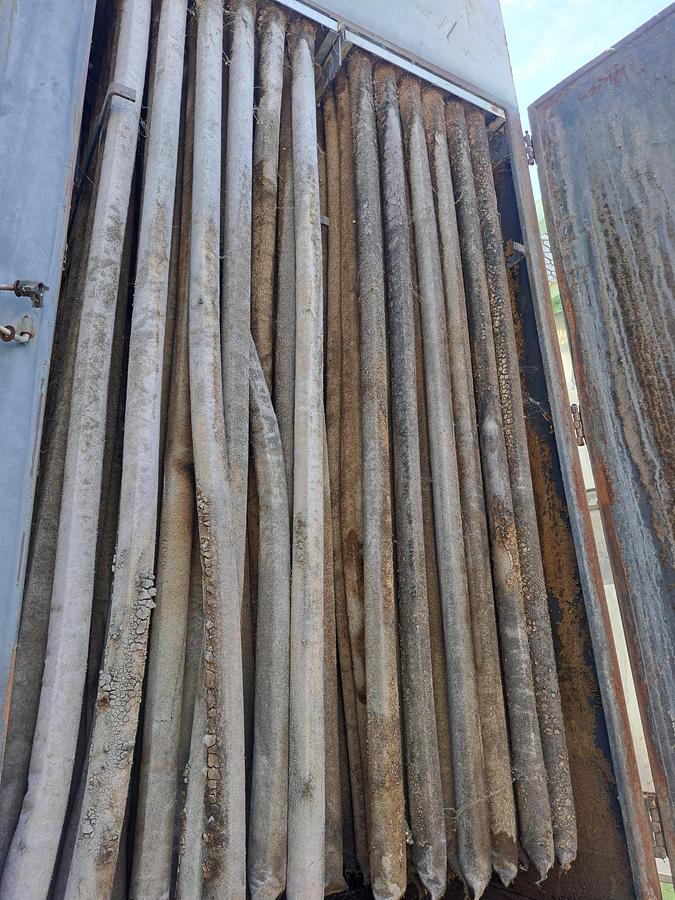

AAF FABRI-Pulse baghouse Dust Collector, Model 6-420-1500. Rated for 1,500 Square Feet Filter Area, set up for (420) bags measuring 2-1/2" diameter x 6' long, (10) cassettes (42) bag cartridge each cassette includes 15 solenoids and diaphragm valves. Complete with blower driven by 15 HP, 230/460V, 3,600 RPM, 3/60 Hz motor. Carbon Steel housing measures 123" x 48" x 112" with (2) hoppers, 60" sloped coned bottom; 12"x 12" discharge; 16" center bottom outlet; 27"diameter air inlet; 11" x 21" air outlet. Mounted on 4 carbon steel legs, includes pulse jet timer control panel, serial number FR890085.
