Mixer, Turbulizer, Con-vey Systems, S/st, Jkt, 125 HP, (2) #L737890
|Measurements||4' Diameter x 9' Long|
|Materials of Construction||Stainless Steel|
|Previous Use||Mixing wood fiber and resin together|

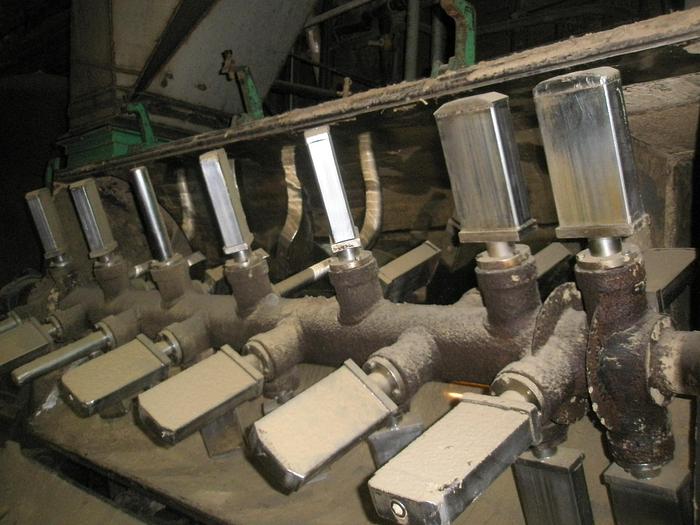

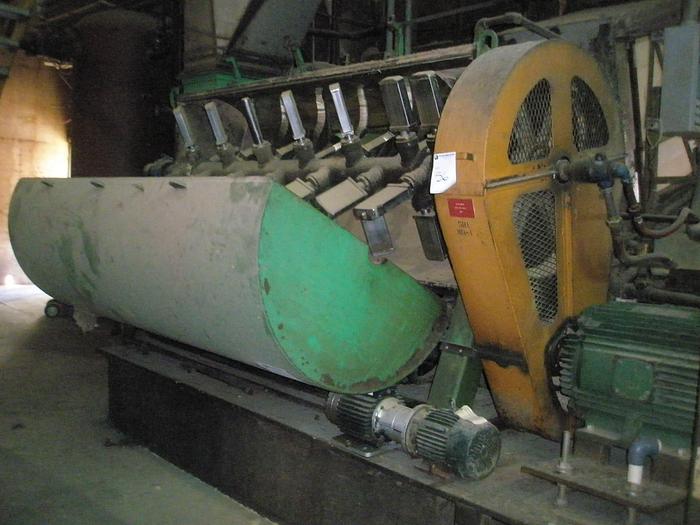

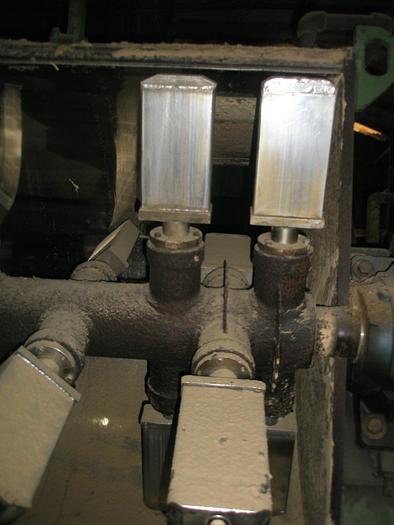

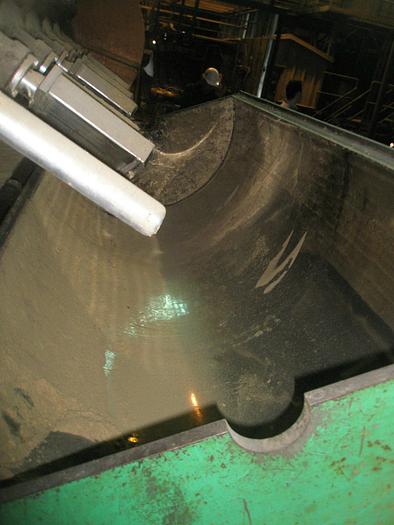

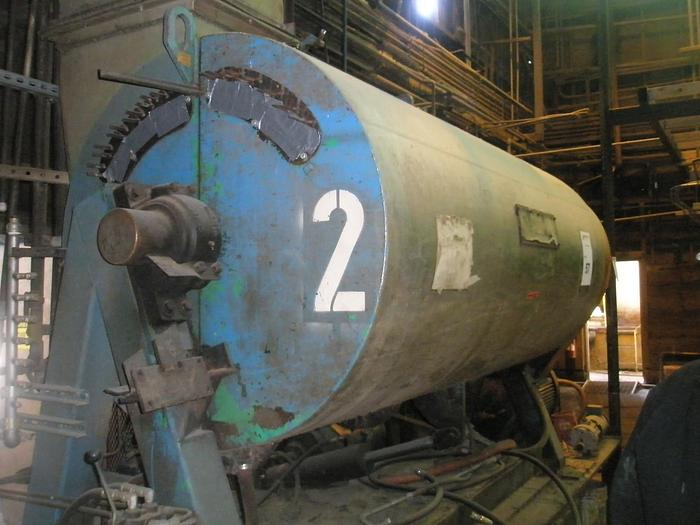

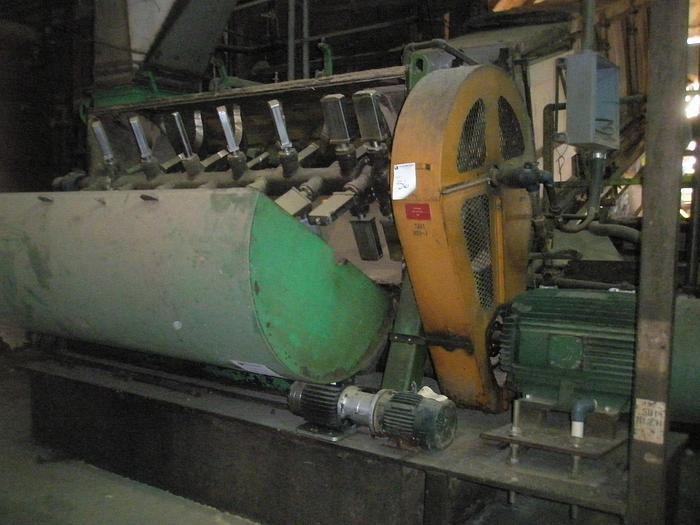

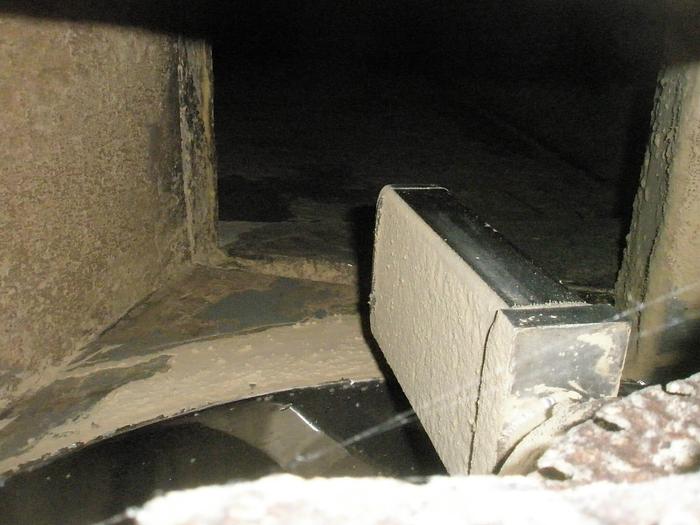

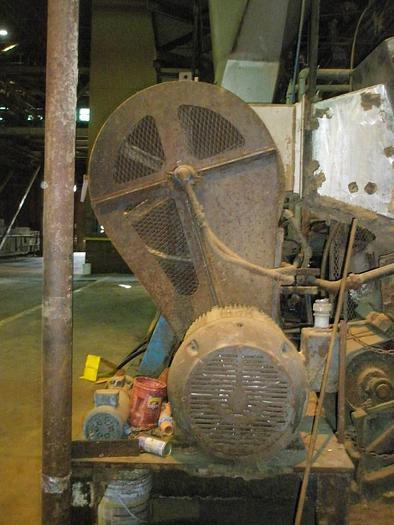

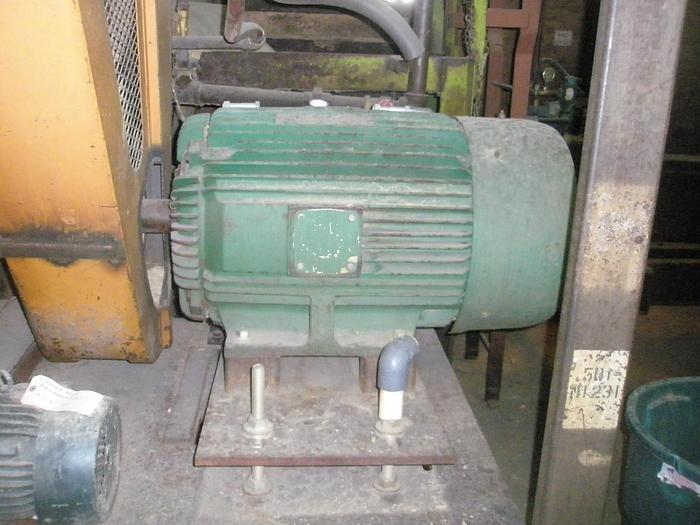

(2) Continuous paddle mixer, approximately 100 cubic feet capacity, jacketed chamber, measures 4' diameter x 9' long, stainless steel chamber with stainless steel paddles. Includes (4) rows of paddles, (26) paddles total, 10" x 5" x 1-3/4" thick, paddles are fixed to 6" diameter cored center shaft for heating, mild steel shaft. Driven by 125 HP, 1785 RPM, 230/460 volt, 3/60 Hz motor thru v-belt drive. Includes rotary steam joint & hydraulic ram to open/close front section of mixing chamber. Manufactured by Con-Vey Systems. Previously mixing wood fiber and resin together. Paddles rotate in counter clockwise rotation. Most paddles are at 40-45 degree angle to convey product towards end, end paddles are turned to 0-10 degree to push material out back on right hand side of blender. In good working condition when taken out of service.
