Mixer, Ribbon, 10 CF, 304 S/st, 5 HP, New, Std #H731060

Mixer, Ribbon, 10 CF, 304 S/st, 5 HP, New, Std #H731060

Available quantity: 1

To be determined

orCall +1 (415) 467-3400


Mixers can be custom fabricated.

Contact our sales team for pricing and lead times.

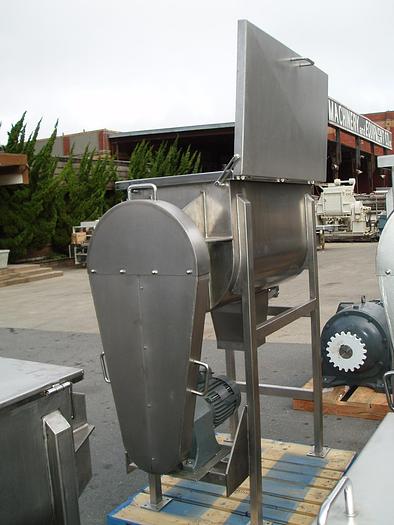

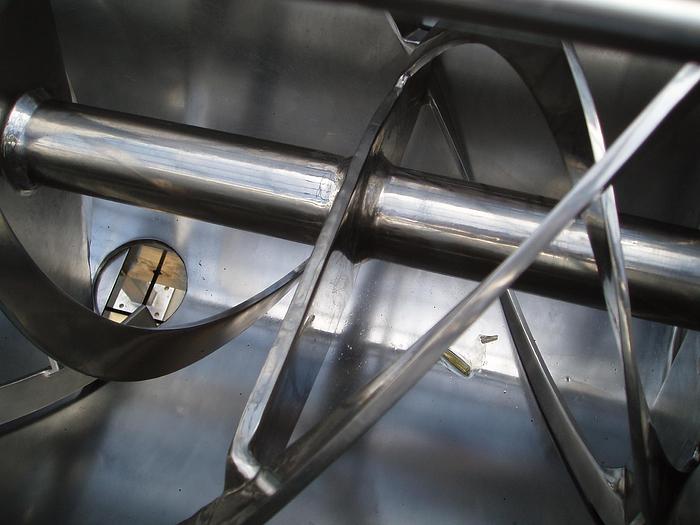

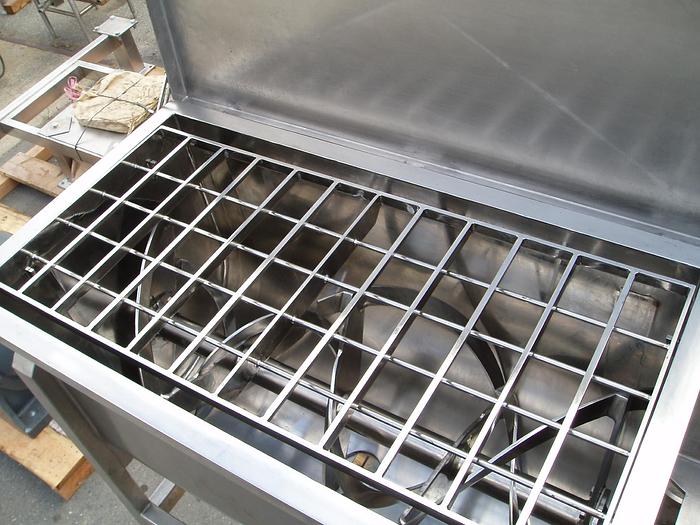

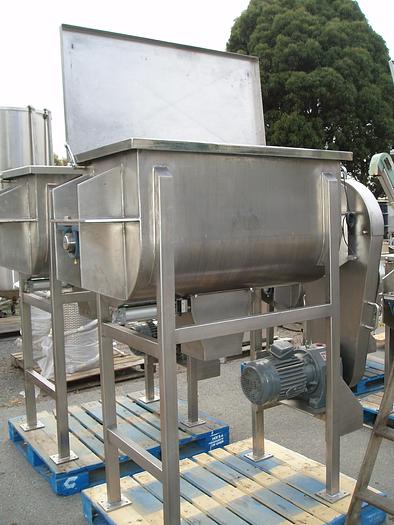

New double ribbon mixer, 10 CF working capacity, polished 304 stainless steel contacts, trough measures 43" long x 22" wide x 26" deep, with mirror interior finish, 4mm shell thickness, includes hinged cover with backrest and safety grate. 2-1/2" solid stainless steel shaft, 38mm wide x 6mm thick outer ribbon, 38mm wide x 6mm thick inner ribbon, 61 RPM ribbon speed. Mixer is driven by 5 HP, gearhead washdown motor thru rollerchain. Motor is an SEW IP55/IE3 UL rated drive. Mixer has a 5" center bottom discharge, knife style pneumatic slide gate, 31-3/4" discharge height. Stainless steel frame & legs.


Stock NumberH731060
Cubic Feet10
Materials of Construction304 Stainless Steel
Lead TimeDelivery Time: Approximately 16 weeks.
