Mixer, Ribbon, 5 CF, 304 S/st, 3 HP, New, Std #H731061

Mixer, Ribbon, 5 CF, 304 S/st, 3 HP, New, Std #H731061

Location:To be determined

Available quantity:1

orCall +1 (415) 467-3400

Description

Mixers can be custom fabricated.

Contact our sales team for pricing and lead times.

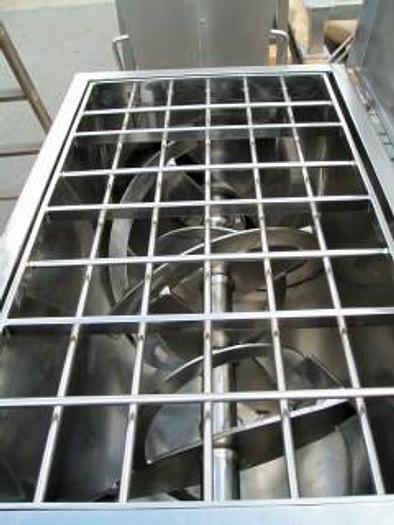

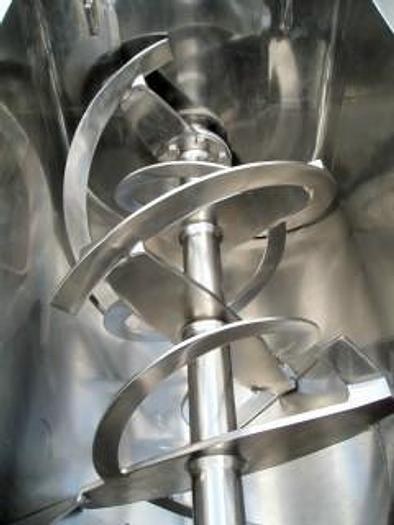

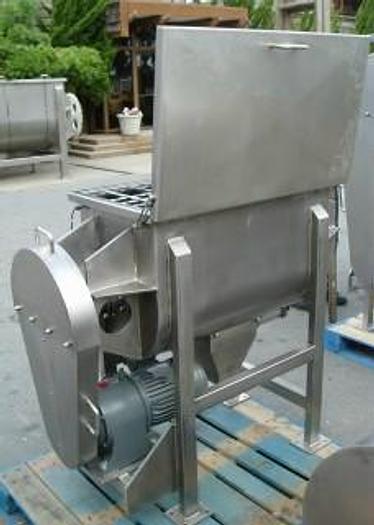

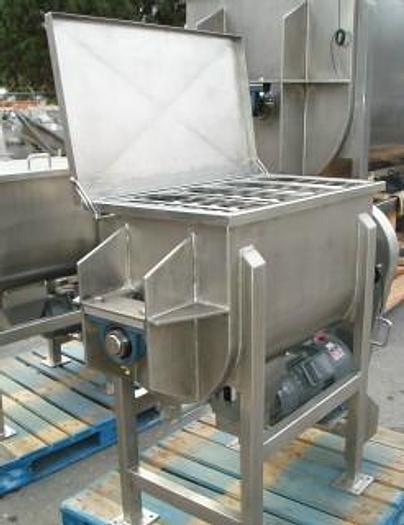

New double ribbon mixer, 5 CF working capacity, polished 304 stainless steel contacts, trough measures 32" long x 18" wide x 22" high, with mirror interior finish, 1/10" shell thickness. Hinged cover with backrest, safety grates. 2-1/4" solid stainless steel shaft, 1-1/2" x 1/4" thick outer ribbon, 1-1/5" x 1/4" thick inner ribbon, 66 RPM ribbon speed. Mixer is driven by 3 HP, gearhead washdown motor thru rollerchain. Motor is an SEW IP55/IE3 UL rated drive. Mixer has a 3-1/2" center bottom discharge, knife style pneumatic slide gate, 14" discharge height. Stainless steel frame & legs.

Specifications

Stock NumberH731061
BasisLoaded
Cubic Feet5
HP3
Materials of Construction304 Stainless Steel
Lead TimeDelivery Time: Approximately 16 weeks.
