Mixer, Ribbon, 35 CF, 304 S/st, 20 HP, New, HD, H #H736047

Mixer, Ribbon, 35 CF, 304 S/st, 20 HP, New, HD, H #H736047

Available quantity: 1

To be determined

orCall +1 (415) 467-3400


Mixers can be custom fabricated.

Contact our sales team for pricing and lead times.

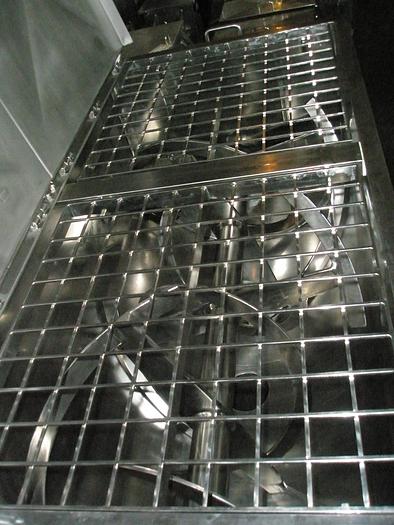

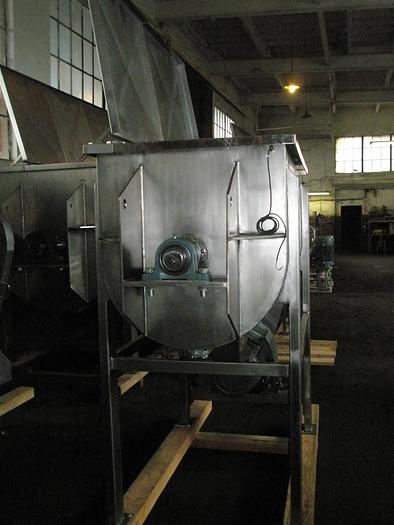

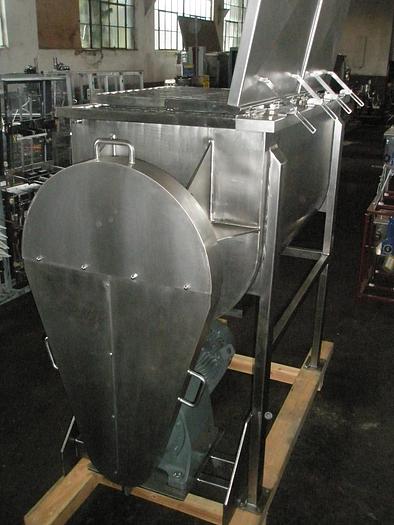

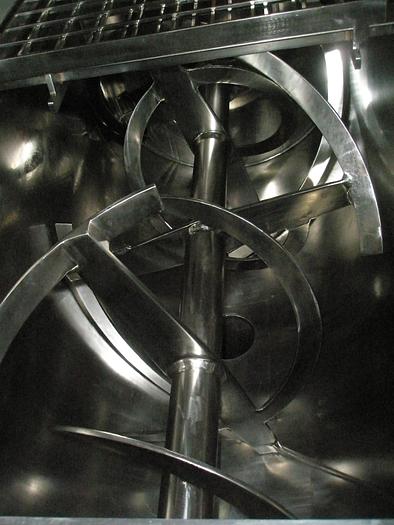

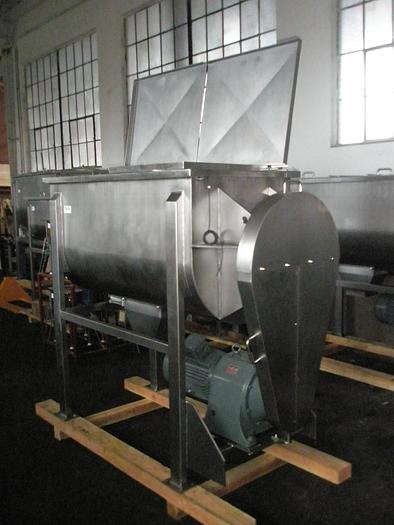

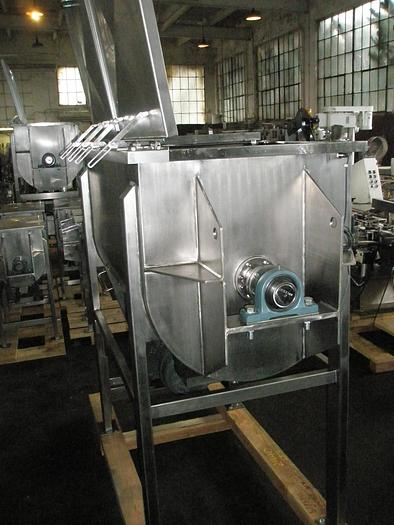

New double ribbon mixer, 35 CF working capacity, heavy duty, polished 304 stainless steel contacts, 64" long x 33" wide x 36" deep, 4mm shell thickness, stainless steel trough with mirror interior finish. Includes 2-piece hinged cover with backrest and safety grates. 3-3/4" diameter. Solid stainless steel shaft, 50mm wide x 12mm thick outer ribbon, 50mm wide x 10mm thick inner ribbon, mixer is driven by 20 HP gearhead, washdown motor, thru rollerchain & sprocket. Ribbons rotate at 37 RPM. Motor is an SEW IP55/IE3 UL rated drive. Mixer has a 6" center bottom discharge, knife style pneumatic slide gate, 24-3/4" discharge height. Stainless steel frame & legs.


Stock NumberH736047
Cubic Feet35
Materials of Construction304 Stainless Steel
Lead TimeDelivery Time: Approximately 16 weeks.
