Mixer, Ribbon, 25 CF, 304 S/st, 15 HP, New, HD, #H737140

Available quantity

1

Location

To be determined

orCall +1 (415) 467-3400

Specifications

Stock NumberH737140
Cubic Feet25
HP15
Materials of Construction304 Stainless Steel
Lead TimeDelivery Time: Approximately 16 weeks.

Description

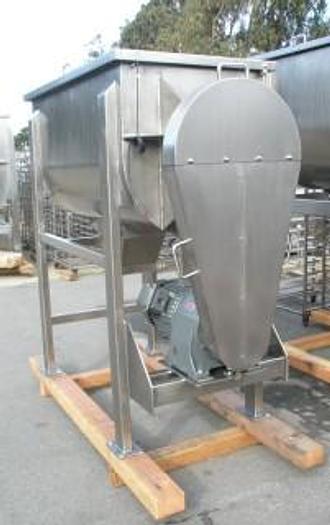

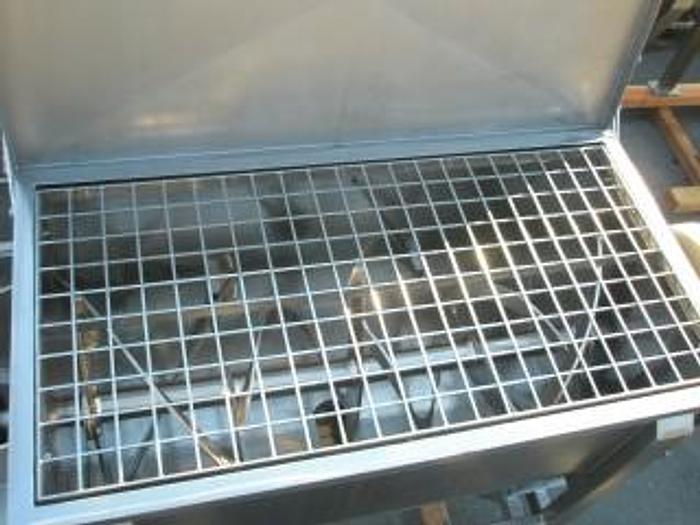

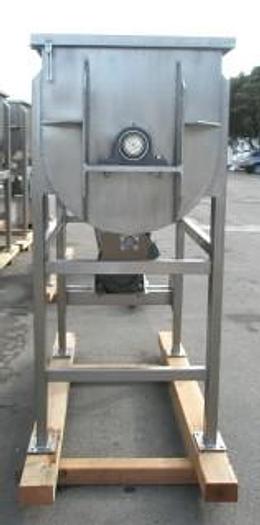

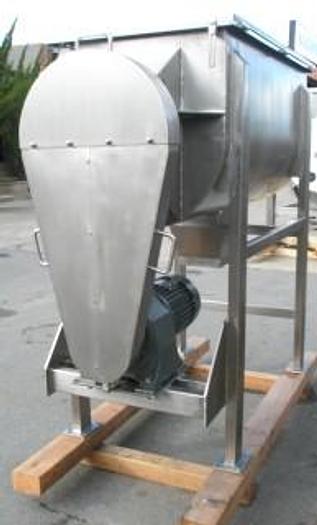

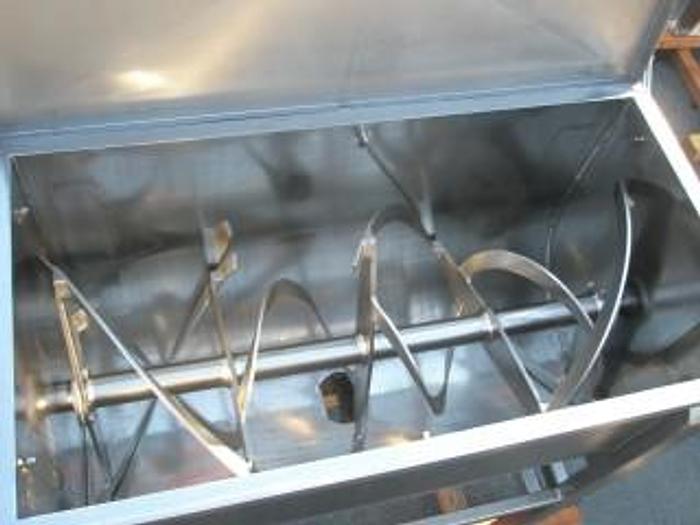

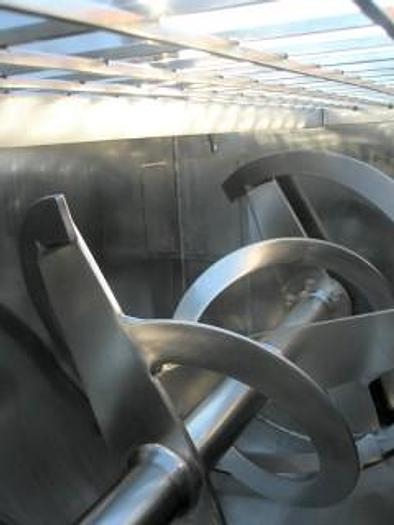

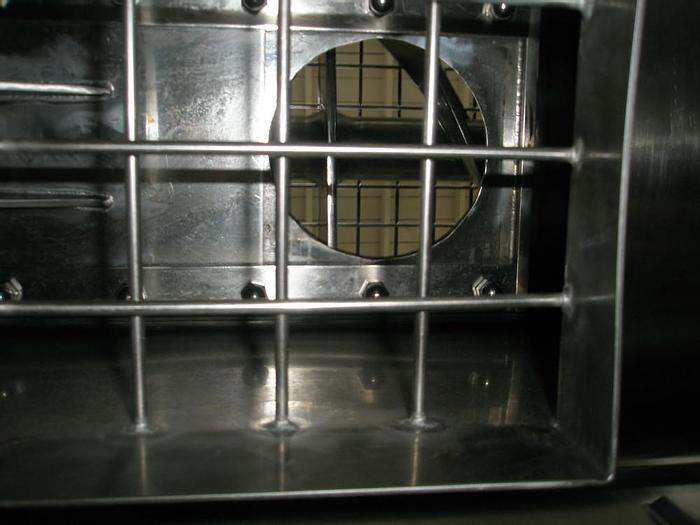

New double ribbon mixer, 25 CF working capacity, heavy duty model, polished 304 stainless steel contacts, trough measures 58" long x 29" wide x 32" deep, with mirror interior finish, 4mm shell thickness. Includes hinged cover with backrest and safety grate. 3" solid stainless steel shaft, 50mm wide x 10mm thick outer ribbon, 50mm wide x 10mm thick inner ribbon, 44 RPM ribbon speed. Mixer is driven by 15 HP, gearhead washdown motor thru rollerchain. Motor is an SEW IP55/IE3 UL rated drive. Mixer has a 6" center bottom discharge, knife style pneumatic slide gate, 29-1/4" discharge height. Stainless steel frame & legs.
