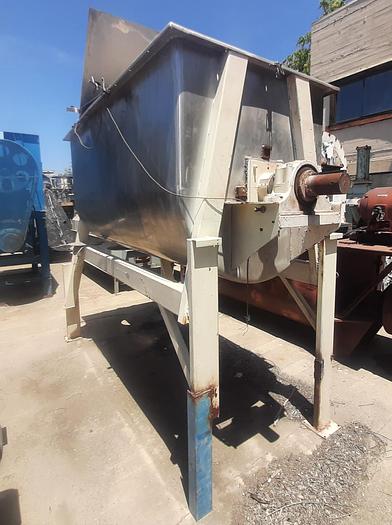

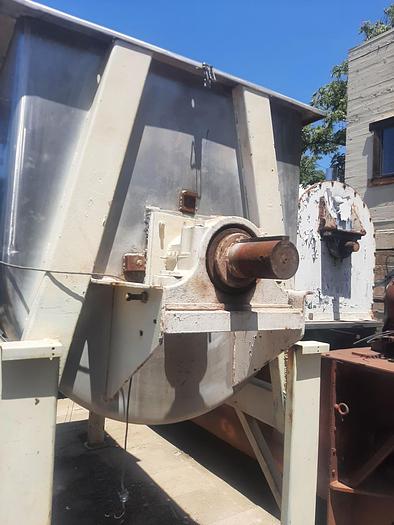

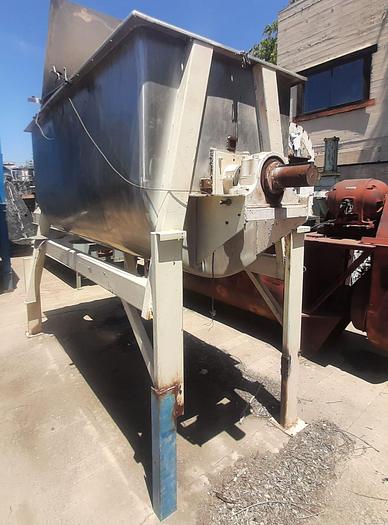

Mixer, Ribbon, 87 CF, S/st, Strong Scott #S742904

Available quantity

1

Location

San Dimas, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberS742904
ManufacturerStrong Scott
ModelIMS87
Serial Number2138
Cubic Feet87
Materials of Construction304 Stainless Steel
BasisFOB

Description

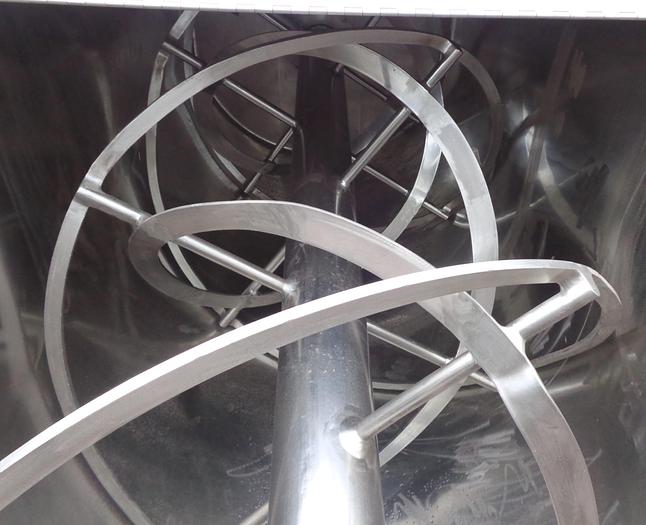

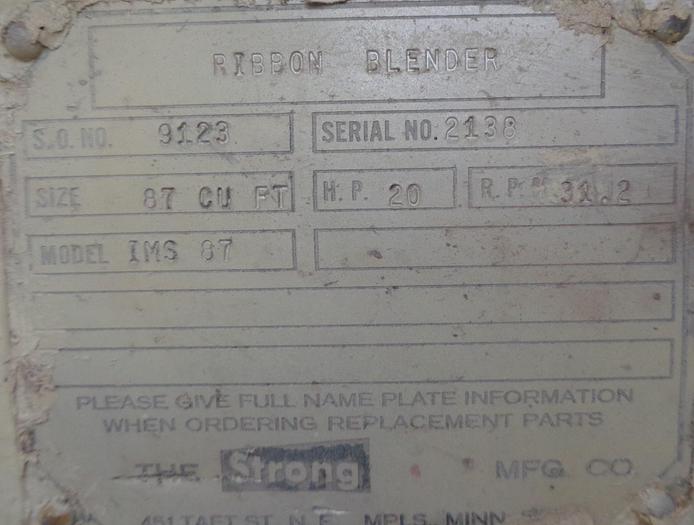

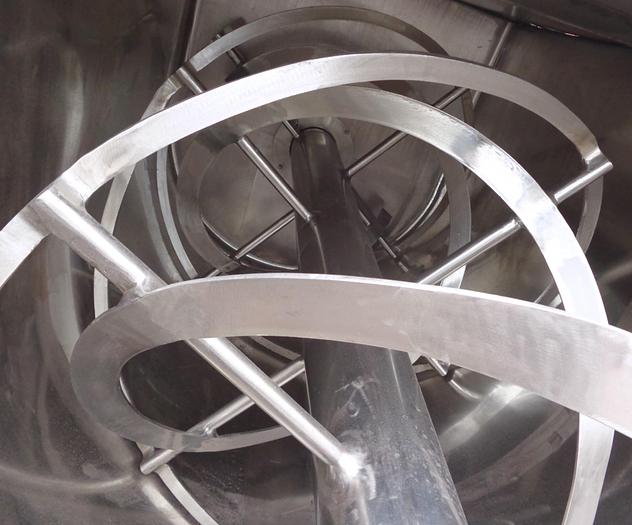

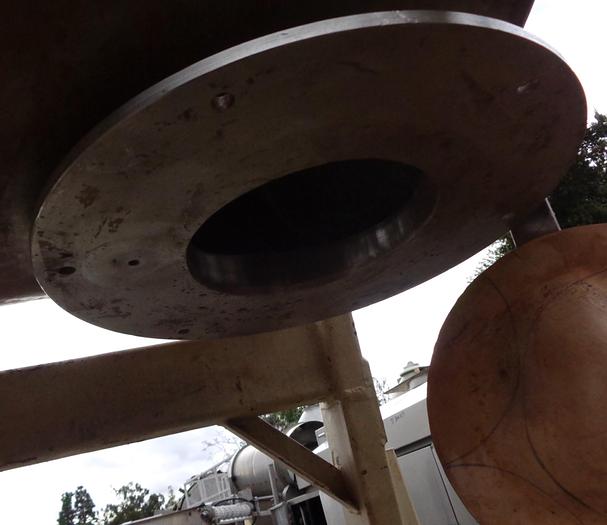

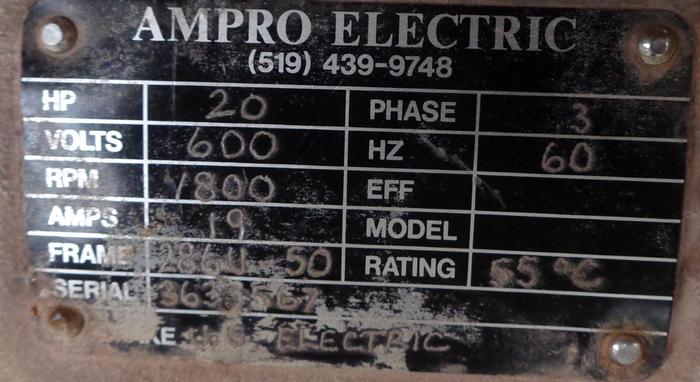

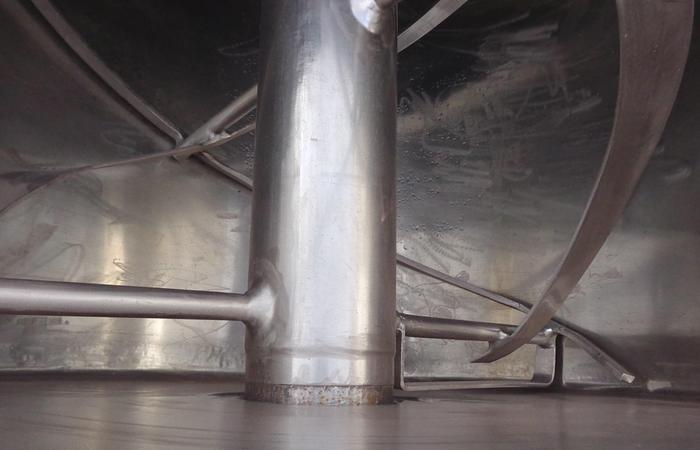

Strong Scott double ribbon mixer, 87 cubic feet capacity, constructed of 304 stainless steel, model IMS87, Serial number 2138. Trough measures 98" long x 45" wide x 48" deep, 10" end bottom discharge, includes 2-piece hinged cover. Ribbon assembly includes 8" solid stainless-steel shaft, 1-3/8" wide X 1/2" thick outer ribbon, 2-1/2" wide x 1/4" thick inner ribbon, Ribbon speed is 31.2 RPM. Mixer was previously driven by 20 HP, 600 volt, 1800 RPM, 3/60 Hz, gearhead motor thru roller chain and sprocket assembly (less drive assembly). Openings top ports, (1) 6".
