Mixer, Ribbon, 300 CF, 304 S/st, 75 HP, New, Std #H731072

Mixer, Ribbon, 300 CF, 304 S/st, 75 HP, New, Std #H731072

Available quantity: 1

To be determined

Get Financing orCall +1 (415) 467-3400

Description

Mixers can be custom fabricated.

Contact our sales team for pricing and lead times.

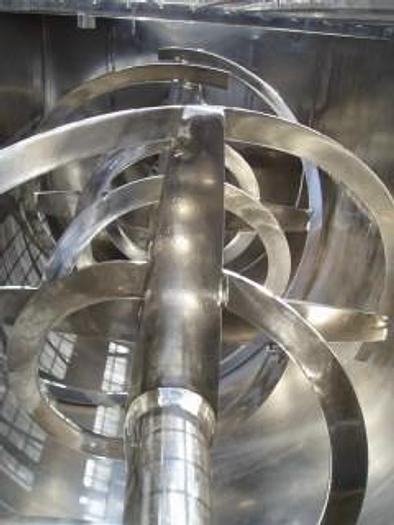

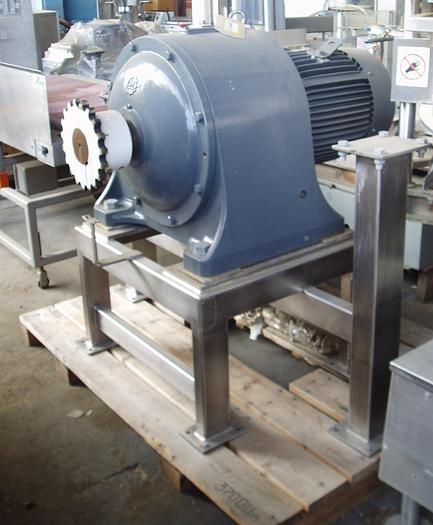

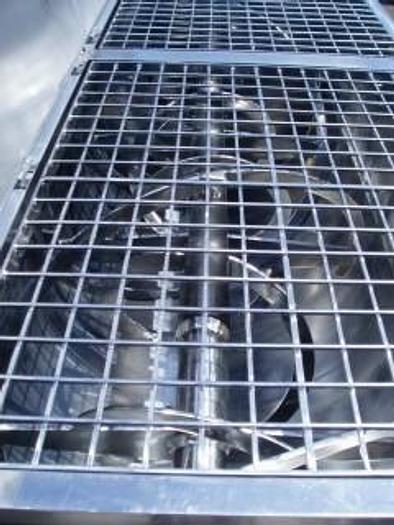

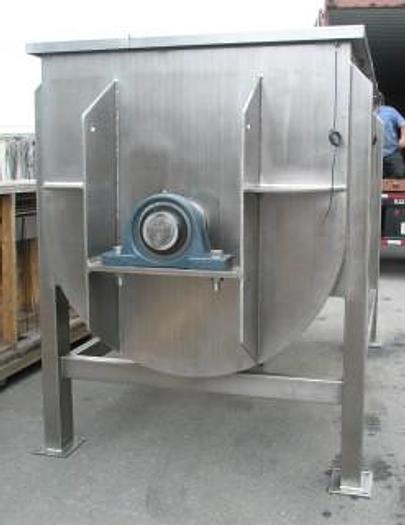

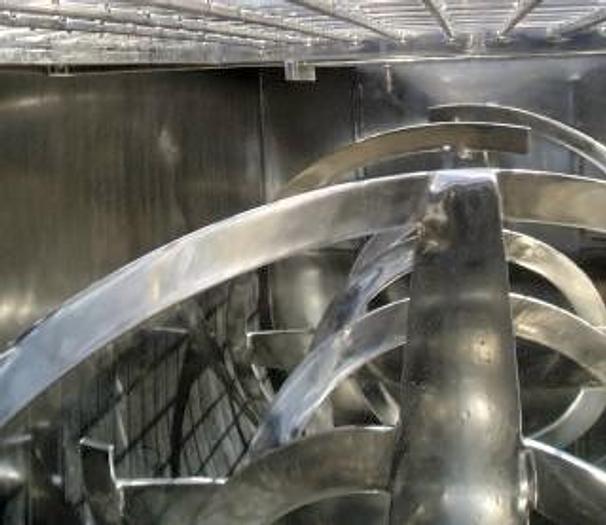

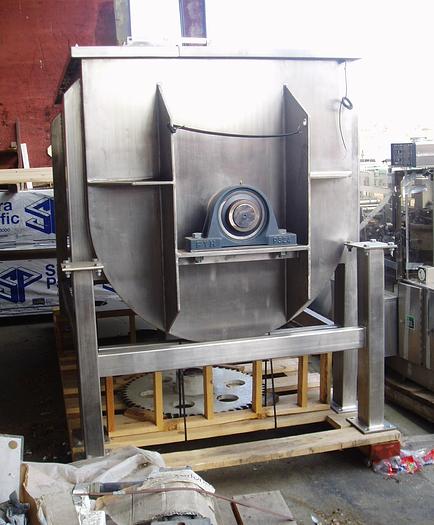

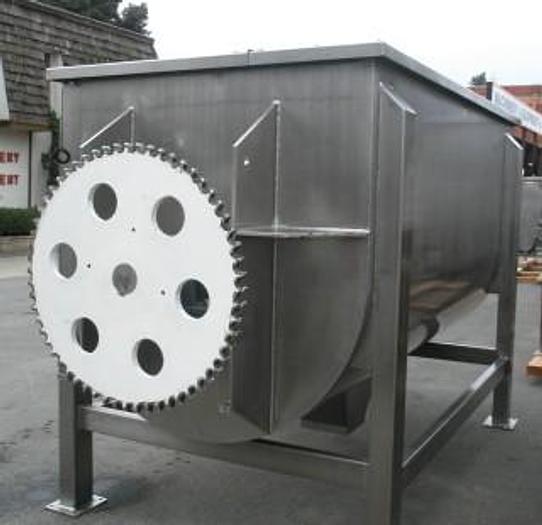

New double ribbon mixer, 300 CF working capacity, polished 304 stainless steel contacts, 132" long x 67" wide x 72" deep, stainless steel trough with mirror interior finish. Hinged cover with backrest, safety grates. 6.18" solid stainless steel shaft, 75mm wide x 12mm thick outer ribbon, 75mm wide x 10mm thick inner ribbon, 20mm thick spokes, 21 RPM ribbon speed. Trough is 8mm shell thickness. Mixer is driven by 75 HP, 220/440v, gearhead motor thru rollerchain. Motor is an SEW IP55/IE3 UL rated drive. Mixer has a 10" center bottom discharge, knife style pneumatic slide gate, 48" discharge height. Stainless steel frame & legs.

Specifications

Stock NumberH731072
Cubic Feet300
HP75
Materials of Construction304 Stainless Steel
Lead TimeDelivery Time: Approximately 16 weeks.
