Mixer, Ribbon, 300 CF, 304 S/st, 100 HP, New, HD #H739935

Mixer, Ribbon, 300 CF, 304 S/st, 100 HP, New, HD #H739935

Location:To be determined

Available quantity:1

orCall +1 (415) 467-3400

Description

Mixers can be custom fabricated.

Contact our sales team for pricing and lead times.

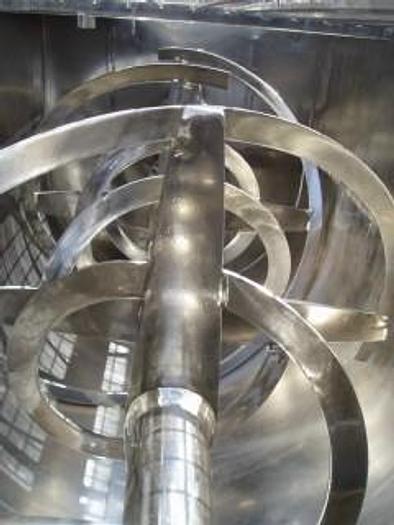

New double ribbon mixer, 300 CF working capacity, polished 304 stainless steel contacts, 132" long x 67" wide x 72" deep, stainless steel trough with mirror interior finish. Hinged cover with backrest, safety grates. 6.5" solid stainless steel shaft, 75mm wide x 12mm thick outer ribbon, 75mm wide x 12mm thick inner ribbon, 20mm thick spokes, 21 RPM ribbon speed. Trough shell thickness is 8mm. Mixer is driven by 100 HP, 220/440v, gearhead motor thru rollerchain. Motor is an SEW IP55/IE3 UL rated drive. Mixer has a 10" center bottom discharge, knife style pneumatic slide gate, 46" discharge height. Stainless steel frame & legs.

Specifications

Stock NumberH739935
Cubic Feet300
HP100
Materials of Construction304 Stainless Steel
Lead TimeDelivery Time: Approximately 16 weeks.
