Mixer, Ribbon, 400 CF, 304 S/st, 75 HP, New, Std #H736822
No longer available
Mixer, Ribbon, 400 CF, 304 S/st, 75 HP, New, Std #H736822
Available quantity: 1
To be determined
Description
Mixers can be custom fabricated.
Contact our sales team for pricing and lead times.

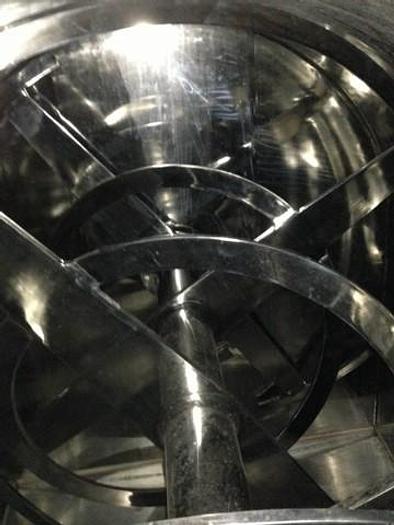

New double ribbon mixer, 400 CF working capacity, polished 304 stainless steel contacts, 146" long x 74" wide x 80" deep, stainless steel trough with mirror interior finish. Hinged cover with backrest, safety grates. 6.5" solid stainless steel shaft, 75mm wide x 18mm thick outer ribbon, 75mm wide x 10mm thick inner ribbon, 16 RPM ribbon speed. Trough is 10mm shell thickness. Mixer is driven by 75 HP, 220/440V, gearhead motor thru rollerchain. Motor is an SEW IP55/IE3 UL rated drive. Mixer has a 12" center bottom discharge, knife style pneumatic slide gate. Stainless steel frame & legs.
Specifications
| Stock Number | H736822 |
| Cubic Feet | 400 |
| HP | 75 |
| Materials of Construction | 304 Stainless Steel |
| Lead Time | Delivery Time: Approximately 16 weeks. |
