Tank, 66 Gallon, 316L Stainless Steel, Agitated, Jacketed, 50 PSI, DCI, #L742357

Tank, 66 Gallon, 316L Stainless Steel, Agitated, Jacketed, 50 PSI, DCI, #L742357

Available quantity: 1

San Dimas, CA

Get Financing orCall +1 (415) 467-3400

Description

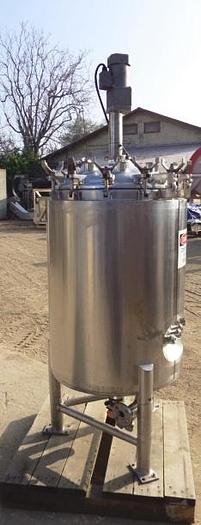

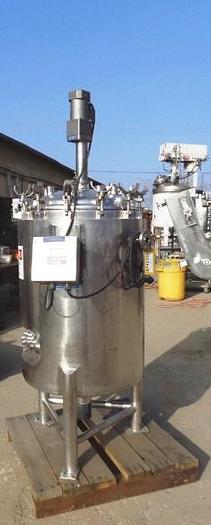

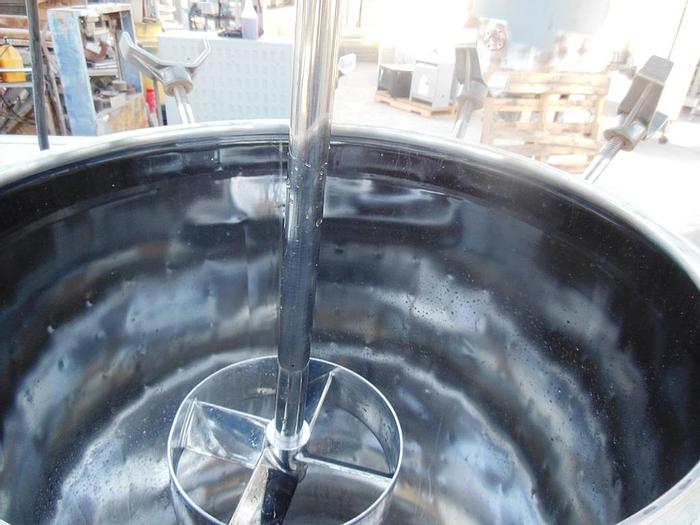

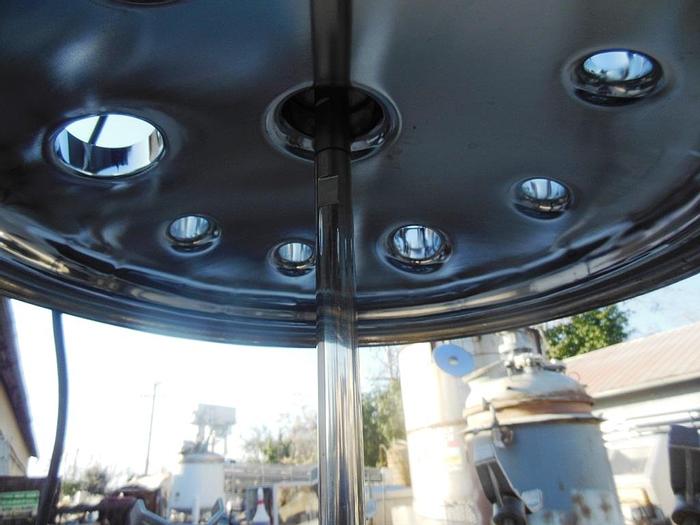

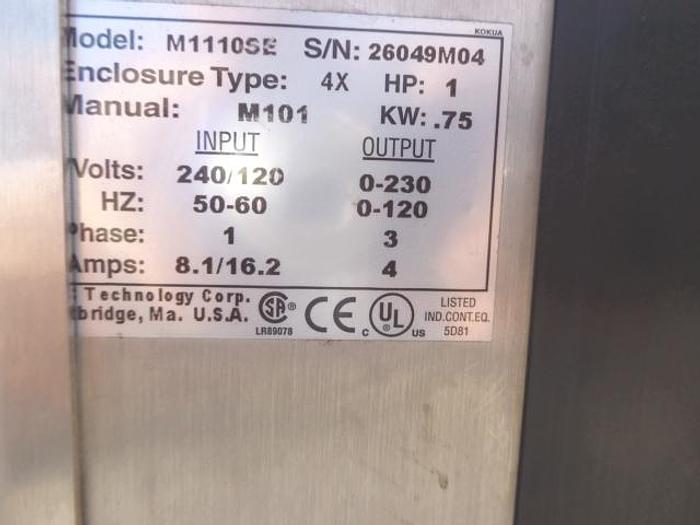

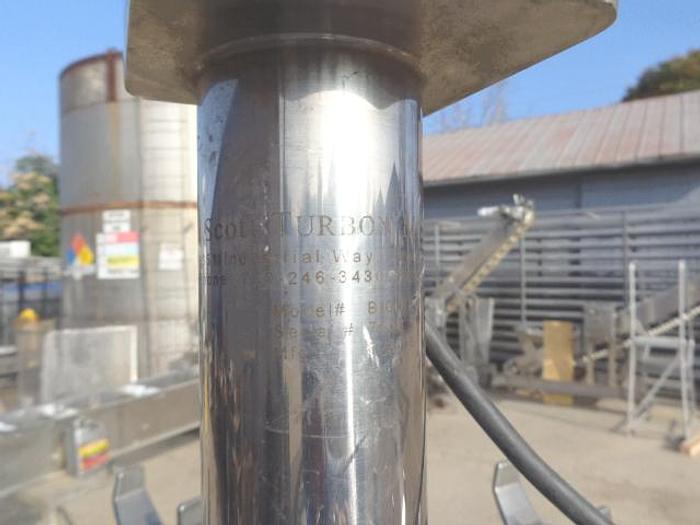

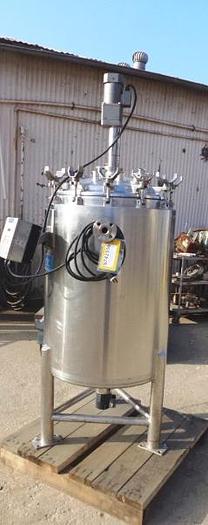

DCI 250-Liter (66 gallon) stainless steel jacketed reactor with Scott Turbon agitation. Measures 24" inside diameter x 36" straight side, dished top & bottom. Vessel is polished internally, rated for 50 PSI at 300 degrees Fahrenheit to negative 20 degrees Fahrenheit, jacketed for 115 PSI at 347 degrees Fahrenheit hinged removable dish top, dish bottom and numerous top inlets, 1.50" center bottom outlet. Complete with Scott Turbon stainless steel agitation, Model BIO FLOW, Serial number 7658, new in 2006, shaft measures 1.50" diameter x 24" long, propeller is 9" diameter x 2.75" high, driven by 1 HP, 240/120 volt, single phase, 50/60Hz, input wired for 120 Volt, quick clamp-on type, variable speed control from 15 RPM to 190 RPM. Vessel mounted on 3 welded legs with footpads. Serial number 94PH19218; National Board number 2698.

Specifications

Stock NumberL742357
ManufacturerDCI
Serial Number94PH19218
Gallons66
Materials of ConstructionStainless Steel
Internal Pressure50 PSI
Previous UsePharmaceutical Processing
BasisFOB
