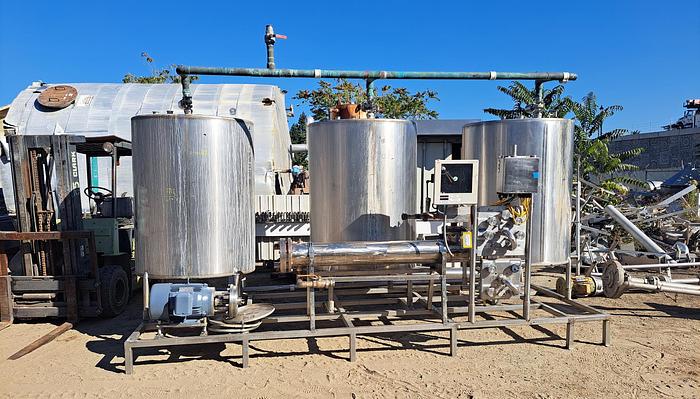

CIP System, 3-Tank, 400 Gallon Each, Stainless Steel, Pump, Heat Exchanger - #S745273

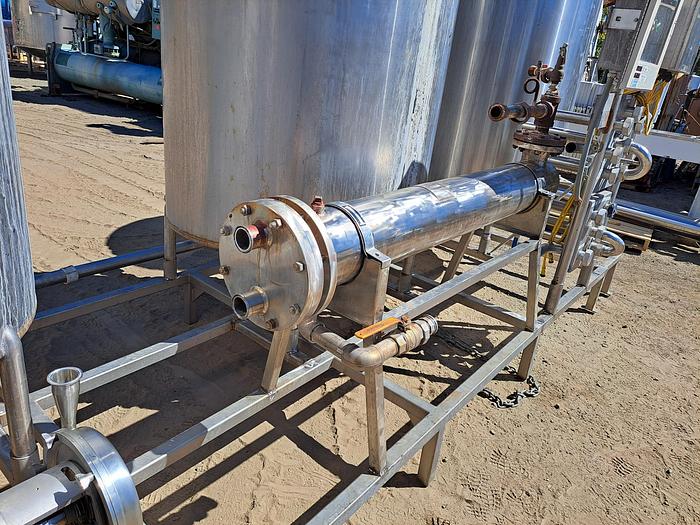

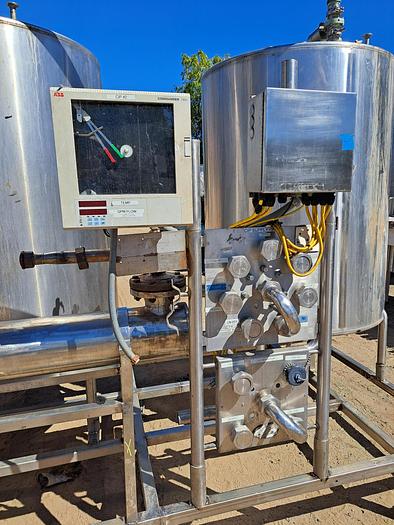

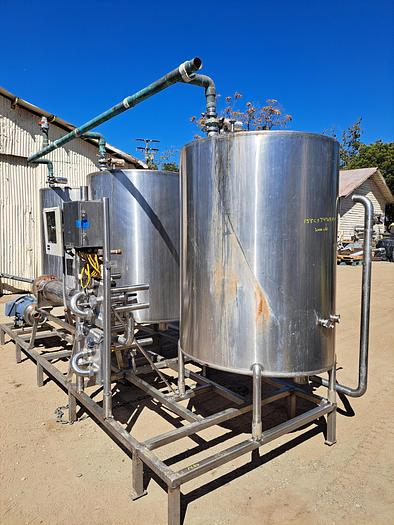

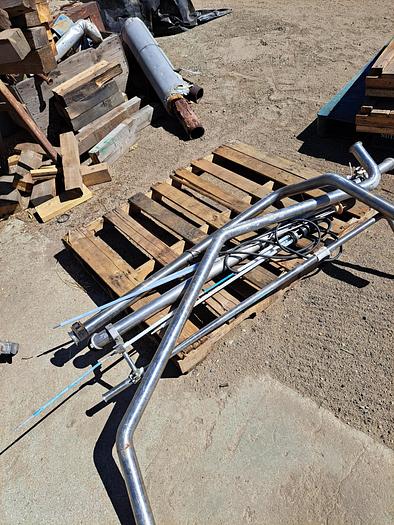

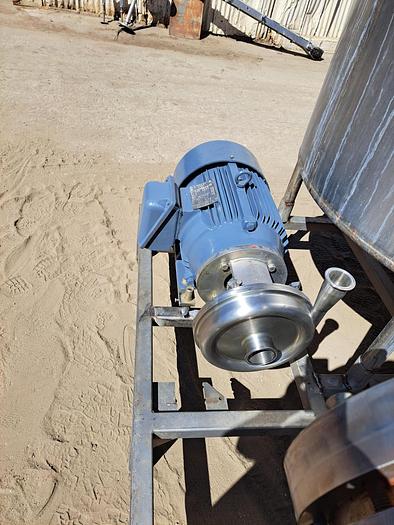

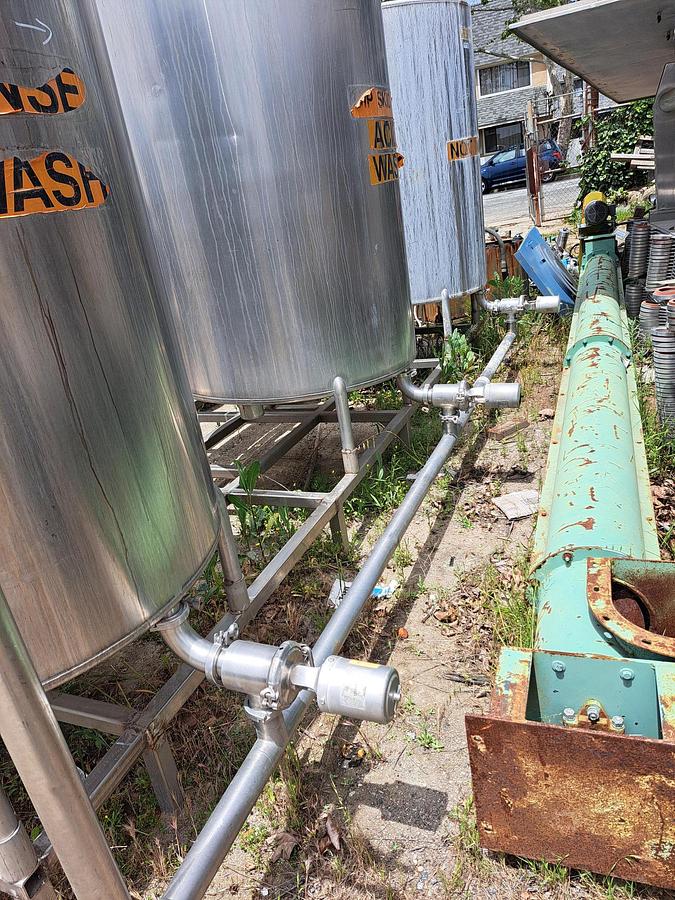

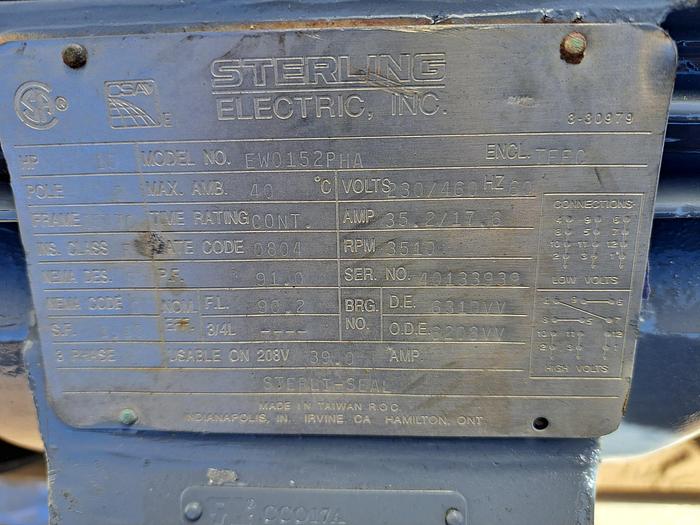

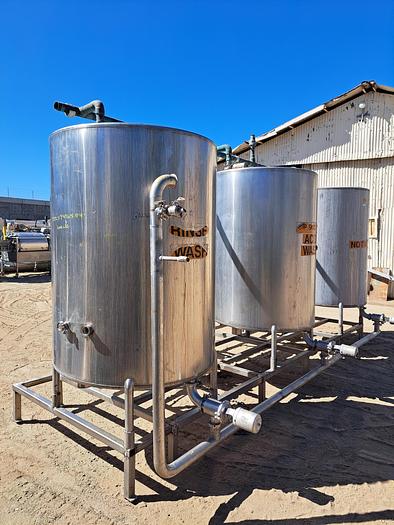

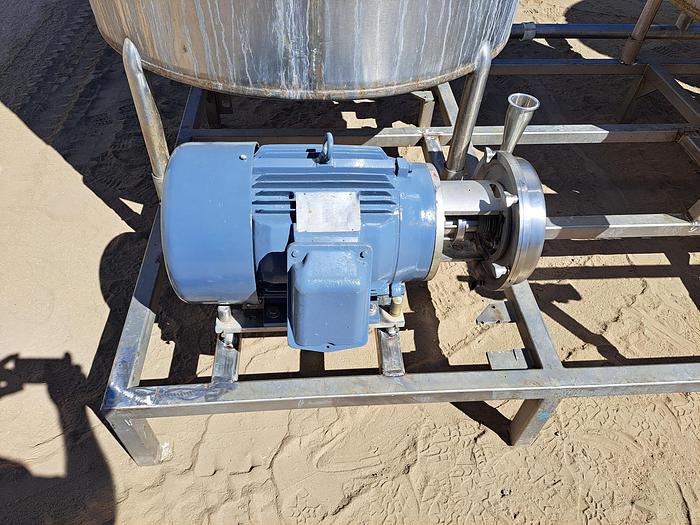

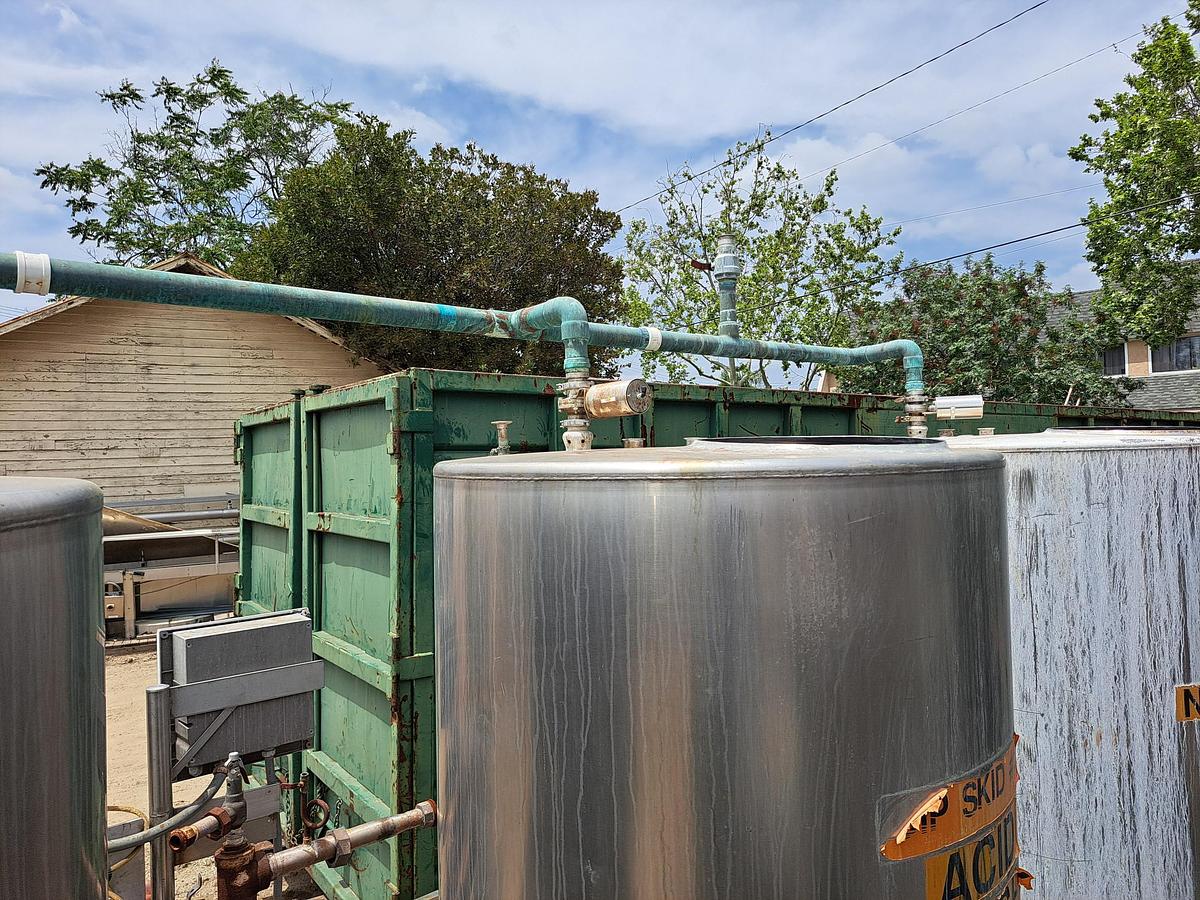

Stainless Steel 3-Tank CIP system. Unit consists of three (3) tanks including rinse tank and acid wash tank, (3) 400 gallon, 304 stainless steel holding tanks, each tank measures 45" diameter X 60" straight side. Includes 15 HP stainless steel centrifugal pump, rated for 15 HP, 230/460V, 3510 RPM, 3/60Hz motor. Also includes Enerquip stainless steel shell & tube heat exchanger, shell measures 8" diameter X 65" long, serial number 6730, national board number 5059. Shell and tubes rated for 150 PSI @ 375 F, MDMT (minimum design metal temperature) is -20 degrees F @ 150 PSI. Offered with piping manifold and chart recorder. Unitized on stainless steel frame.
