Centrifuge, Basket, Separator, Alfa Laval, UVPX507 #C743922

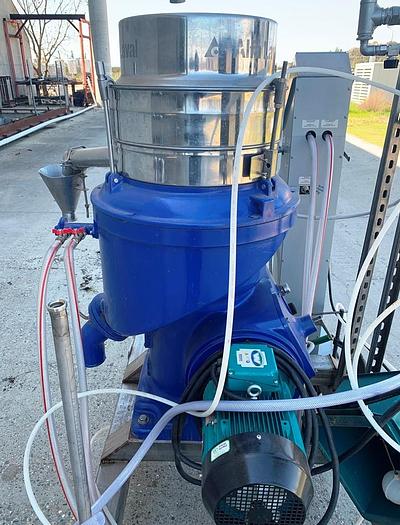

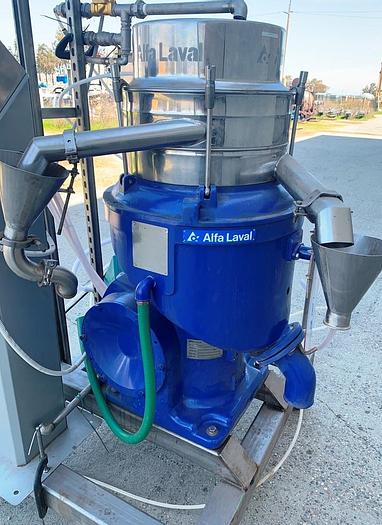

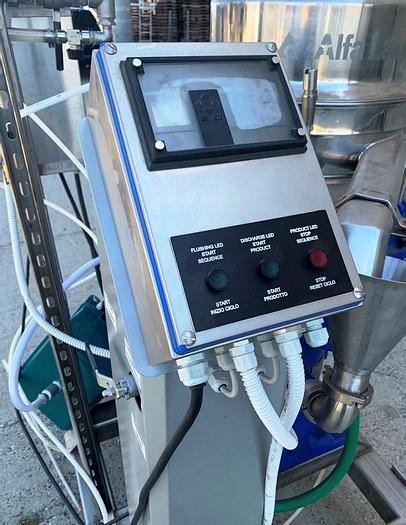

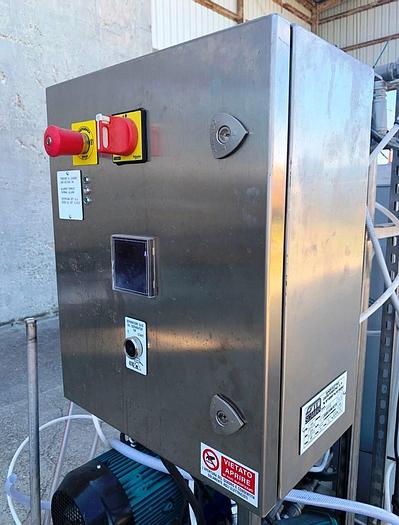

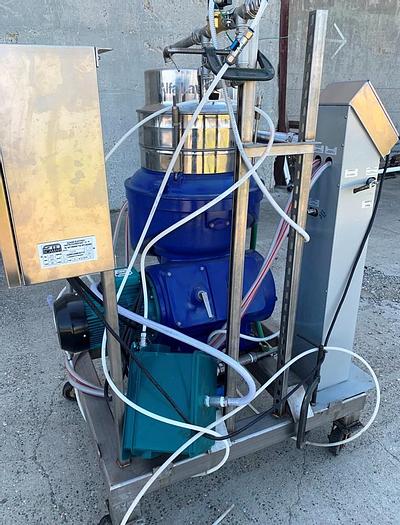

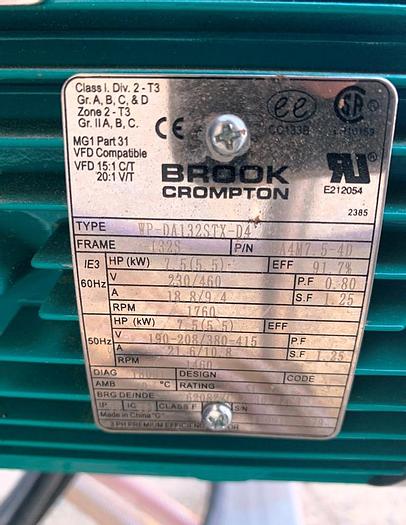

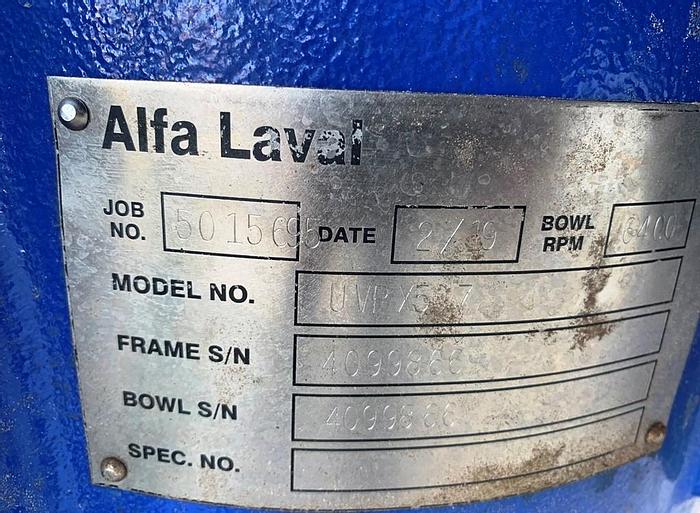

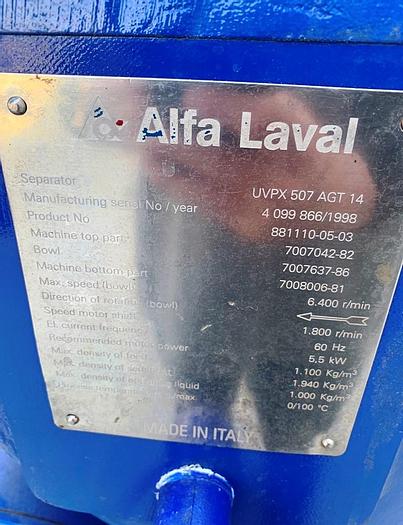

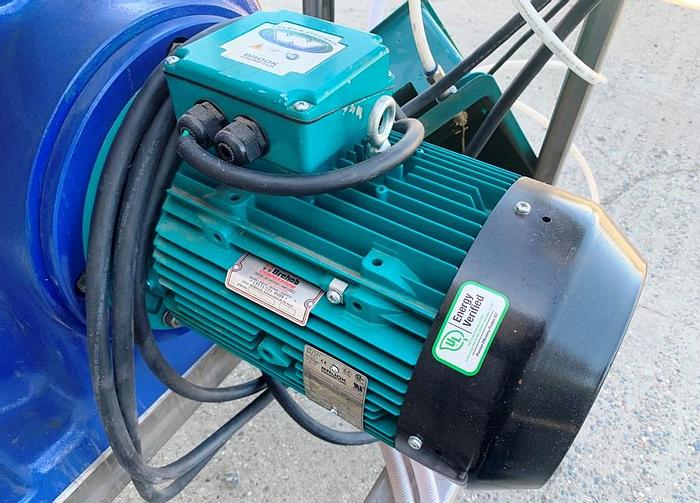

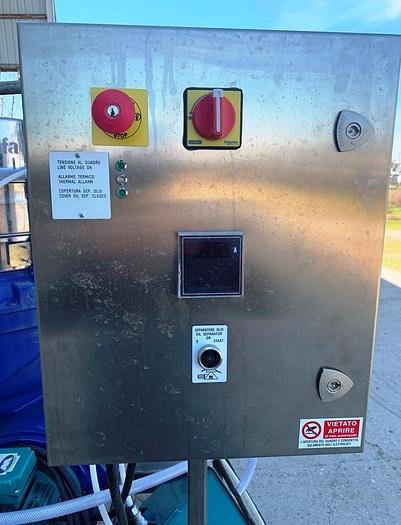

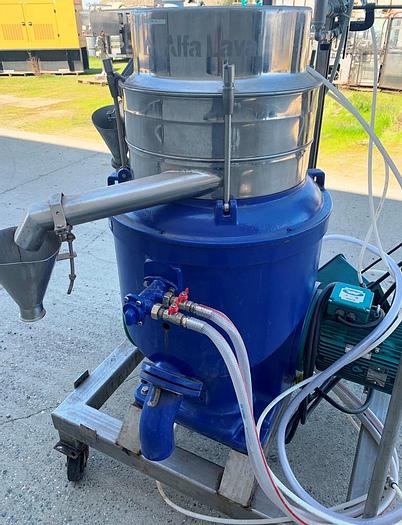

Alfa Laval Model UVPX507 507 AGT 14 oil separator for food grade oil, bowl rated for 6400 RPM, Complete with digital controller and main stainless electrical box with speed readout and emergency stop. Pipe feeds to perforated basket at infeed, 4" diameter solids discharge, (2) 3" wide x 2" high liquid discharges. Driven by 7-1/2 HP, 230/460V motor. Rated for 1800 RPM shaft speed, 60Hz, 7.5kW, 1.100 kg/m3 max density feed, 1.940 kg/m3 max density of sediment, 1.000 kg/m3 max density of operating liquid, 0/100 degrees C min/max. Serial number 4099866/1998, job number 5015695. Rebuilt in 2019 and only used for 10 hours. Unitized on stainless steel portable skid.
